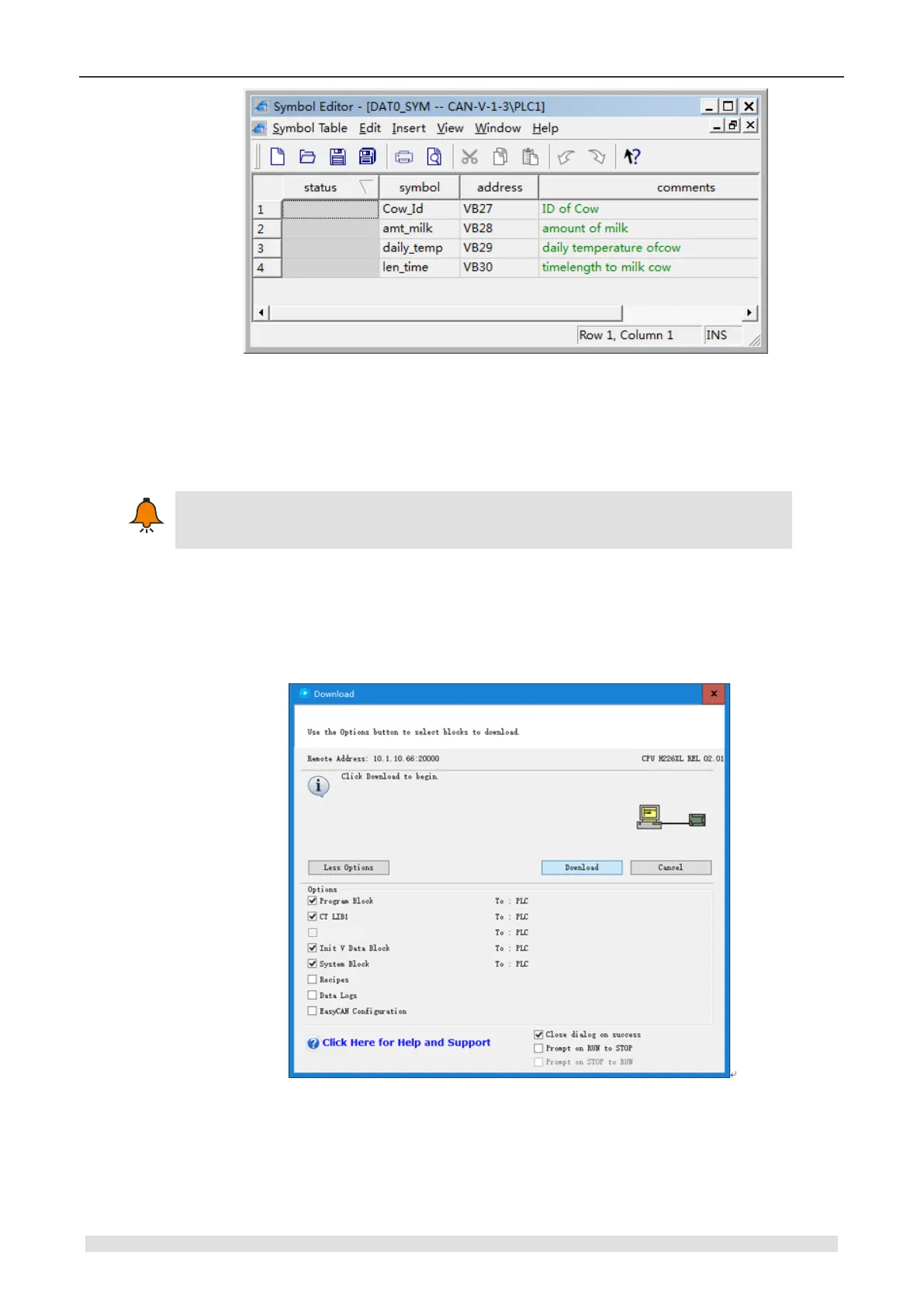

Figure 6-29 Symbol Table
Downloading a Project with Data Log Configuration
Download a project with data log to CPU before using the record. If a project has a data log
configuration, the download window has the option of “Data Log” checked by default.
When you download a project with data log, the existing log in the memory card will lost.
To download a project that contains data log configurations, follow steps below. See Figure 6-29.
1. Select File > Download.
2. Ensure the “Data Logs” checked in dialog as figure below.
3. Click “Download”.
Figure 6-29 download data logs
Using the S7-200 Explorer
The S7-200 Explorer is used to read data log from the memory card, and then store it in a
Comma separated Values (CSV) file. Each read create a new file, format as PLC address, data
