CTH200 Series PLC User Manual
157

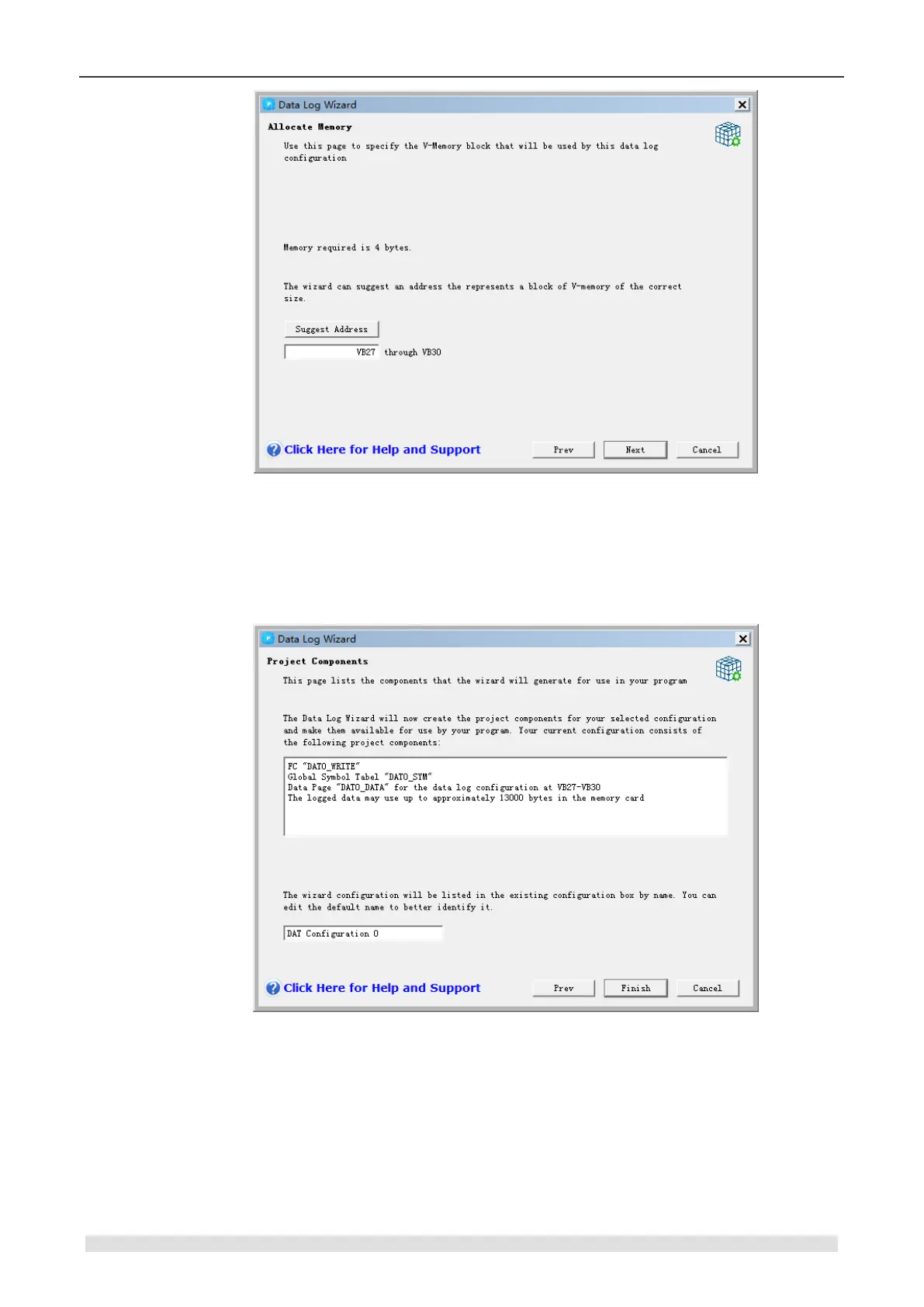

Figure 6-27 Allocate Memory
Project Components
Different components to be added into your project are listed in “Project Components”, as figure
6-28. Click “Finish” to complete the data log wizard and add these components to project. Each
data log construction owns a unique name with data log set(DATx) attached at the end.
Figure 6-28 Project components
Symbol Table
Create a symbol table, which can be used in DATx_WRITE as well as to visit the value of data
log in V memory, for each data log and define some constant to indicate it. Each table create
symbol name for the domain in data log.
