COTRUST CTH200 Series User Manual

Applications
156

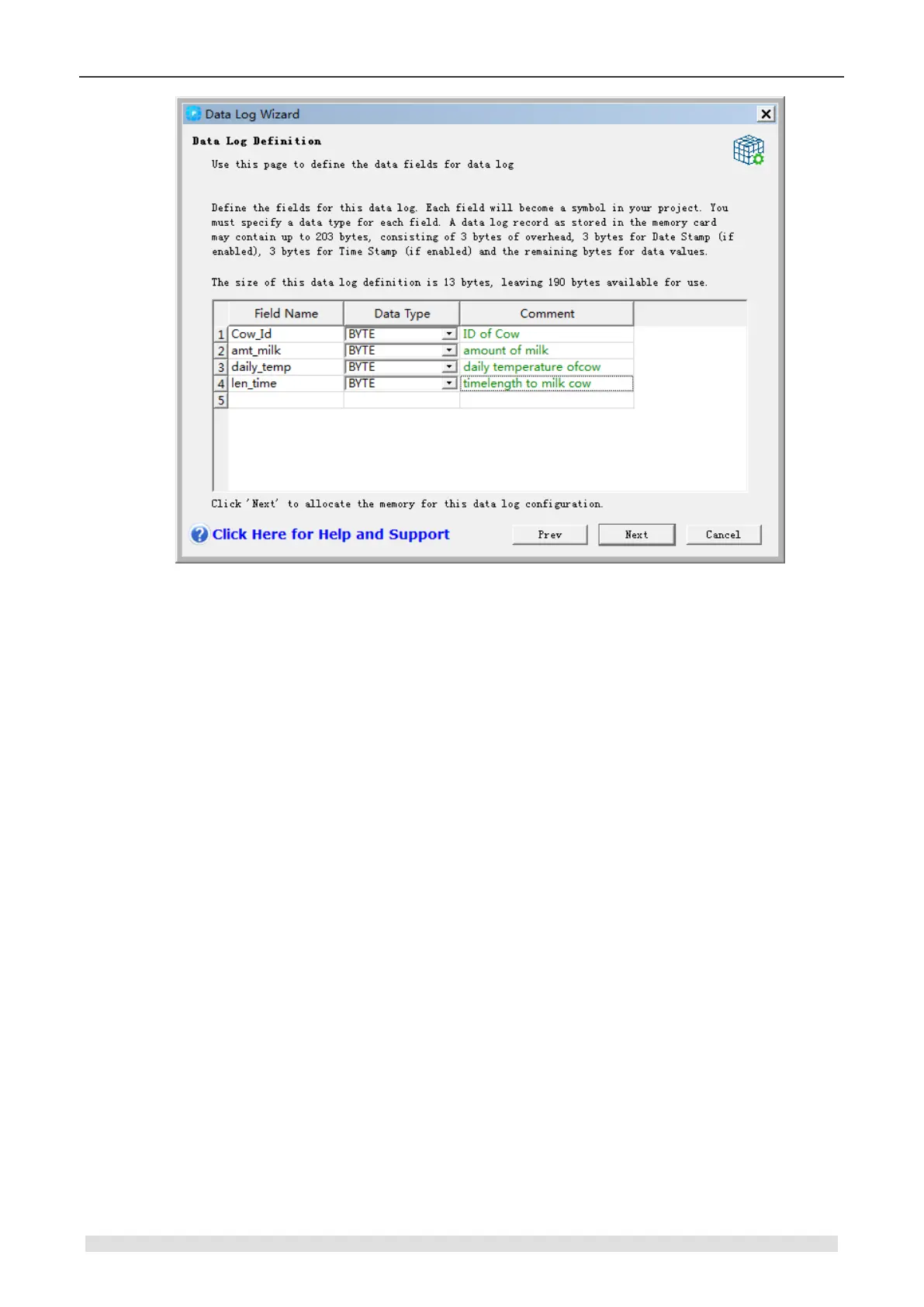

Figure 6-26 Define the Data Log
Allocating Memory area
The data log wizard creates a block, a storage address where data log record stored before write
into memory card, in the V memory area of PLC. Assign beginning address for the V memory
area where you put configuration. You can either select the V memory area address yourself or
use the one, with correct length and used, recommended by wizard. The size of the block varies
from your choices in the Data Log wizard. See Figure 6-27.
Follow the steps to allocate memory area:
1. To select the V memory address where the data log record will be constructed, click
“Suggested Address” to enter the address.
2. For the Data Log Wizard selecting an unused V memory block of the correct size, click the
“Suggested Address”.
3. Click “Next”.
