Digital Output Port
Operator's Manual 3-3
WARNING:
All equipment used within two meters of the patient (patient environment) must be IEC 60601-1
approved. All equipment used outside the patient environment must be approved to the
appropriate IEC or ISO standards (for example, IEC 950 for office equipment).

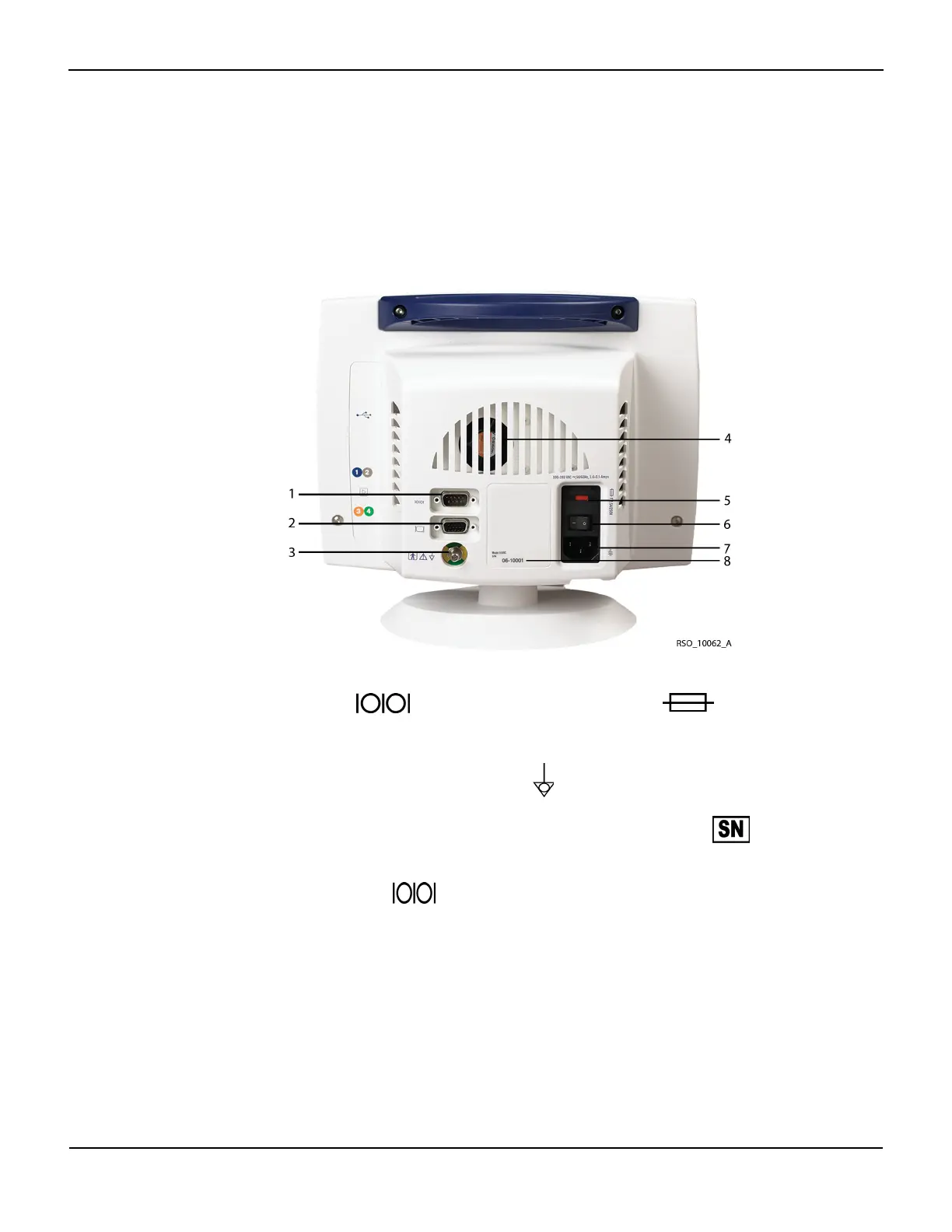

Figure3-1.Back Connections and Elements
3.5
Digital Output Port
This port provides real time (every 5–6 seconds) and stored (every 30 seconds) digital data com-
munications with other devices such as a PC. Consult Covidien for compatibility with other com-
mercial devices (see section 7.4 Using the Digital Output Port).
1
Digital output port
5
Fuse
2 VGA output port 6 AC mains (master) power switch
3
Potential equalization (grounding post) connector
7 AC input, power cord connector
4 Alarm speaker and cooling fan 8
Serial number
