Quick Setup
4-2 Operator's Manual

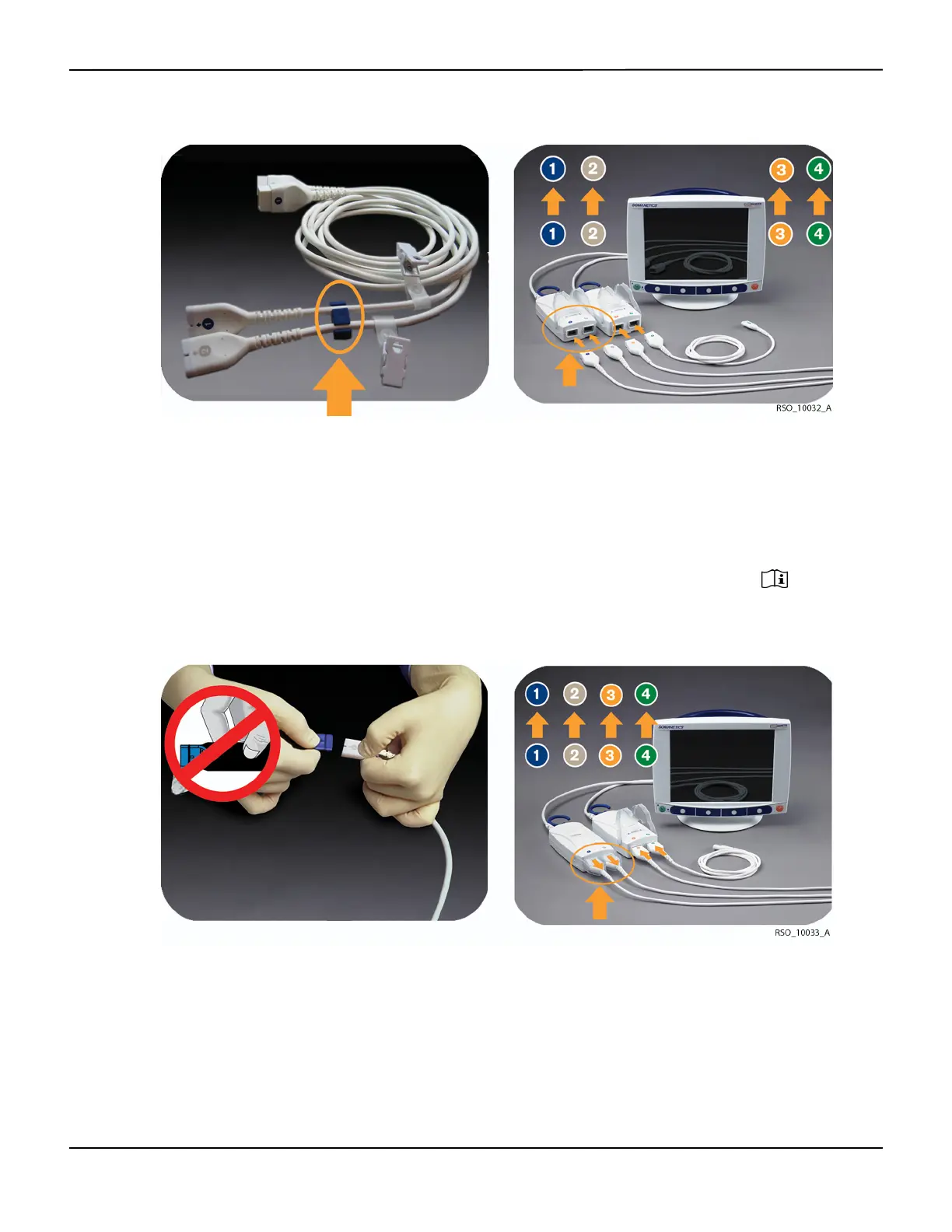

Figure4-2.Connecting the Sensor Cable Connectors to the Preamplifier
 Note:
OxyAlert NIRSensor sensors connect directly to the preamplifier and do not use the reusable sensor cable
(applies to steps 3 and 4).
4. Attach the sensors to the reusable sensor cables. Hold the connectors. (The sensor cable can be con-
nected to sensors before or after placement). Different INVOS™ system sensors (adult, pediatric, and
infant/neonatal) cannot be used on the same monitor. (See sensor instructions for use inside
carton.)
Figure4-3.Connecting the Sensors to the Sensor Cables
5. Connect any optional accessories, including the Covidien USB flash drive.
