Installation
3-8 Operator's Manual
If the connector will not fully enter the side panel connection, remove it and examine for any
defects in both components. If both components show no signs of damage, realign the dots and
try again.
Caution:
Make sure all connectors are fully engaged and free from moisture. Moisture intrusion may cause
inaccurate readings, erratic readings or no readings at all.
Caution:
Make sure that preamplifier A, channel 1 and 2, is connected to the upper input and preamplifier
B, channel 3 and 4, is connected to the lower input.
To disconnect the preamplifier unlock the connection by drawing back on the ridged, silver outer
sleeve of the connector. Then pull the cable out of the preamplifier connection.

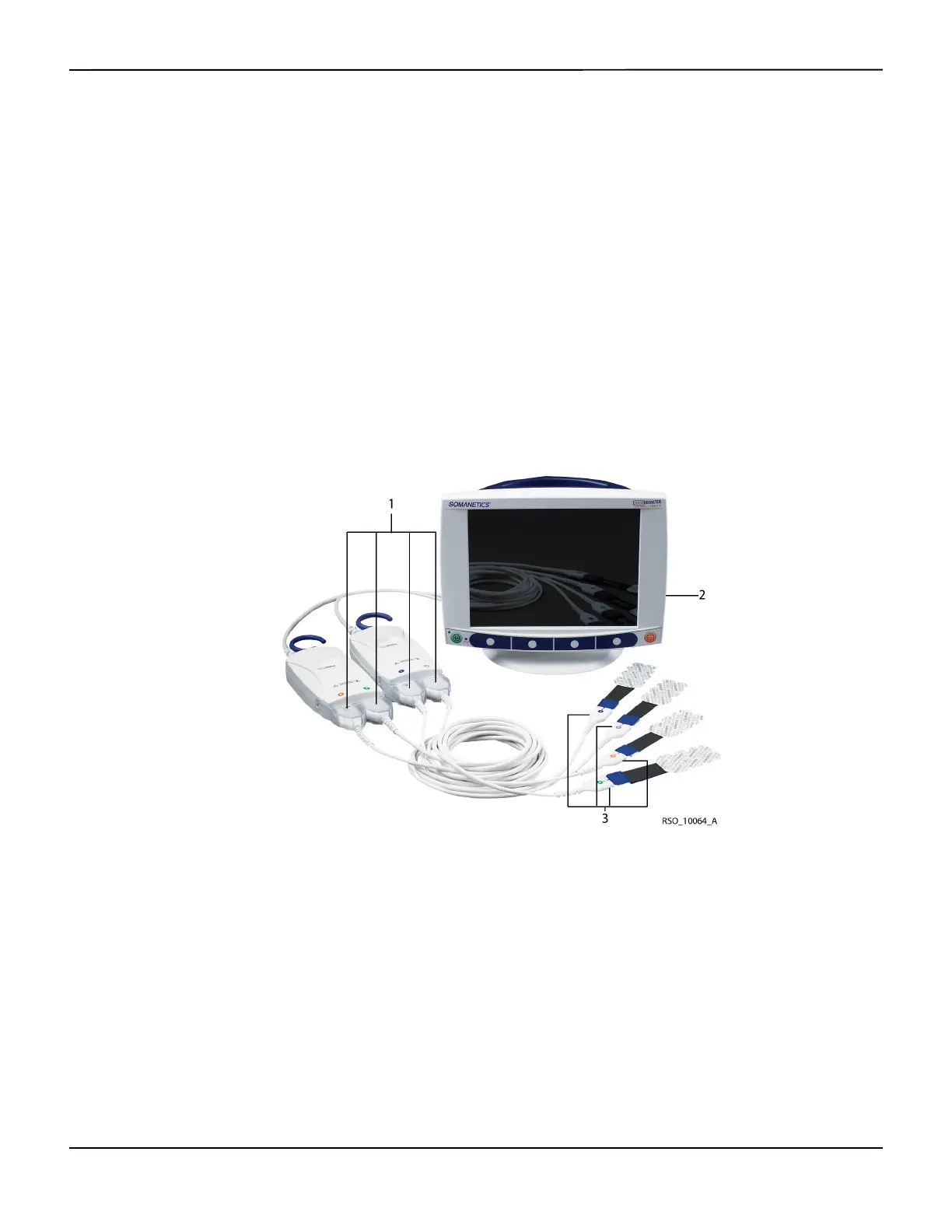

Figure3-3.Preamplifiers, Reusable Sensor Cables, and Sensor Connections
1 Preamplifier to reusable sensor cable connection
2 Preamplifier cable to monitor connection
3 Sensors to reusable sensor cable connection
