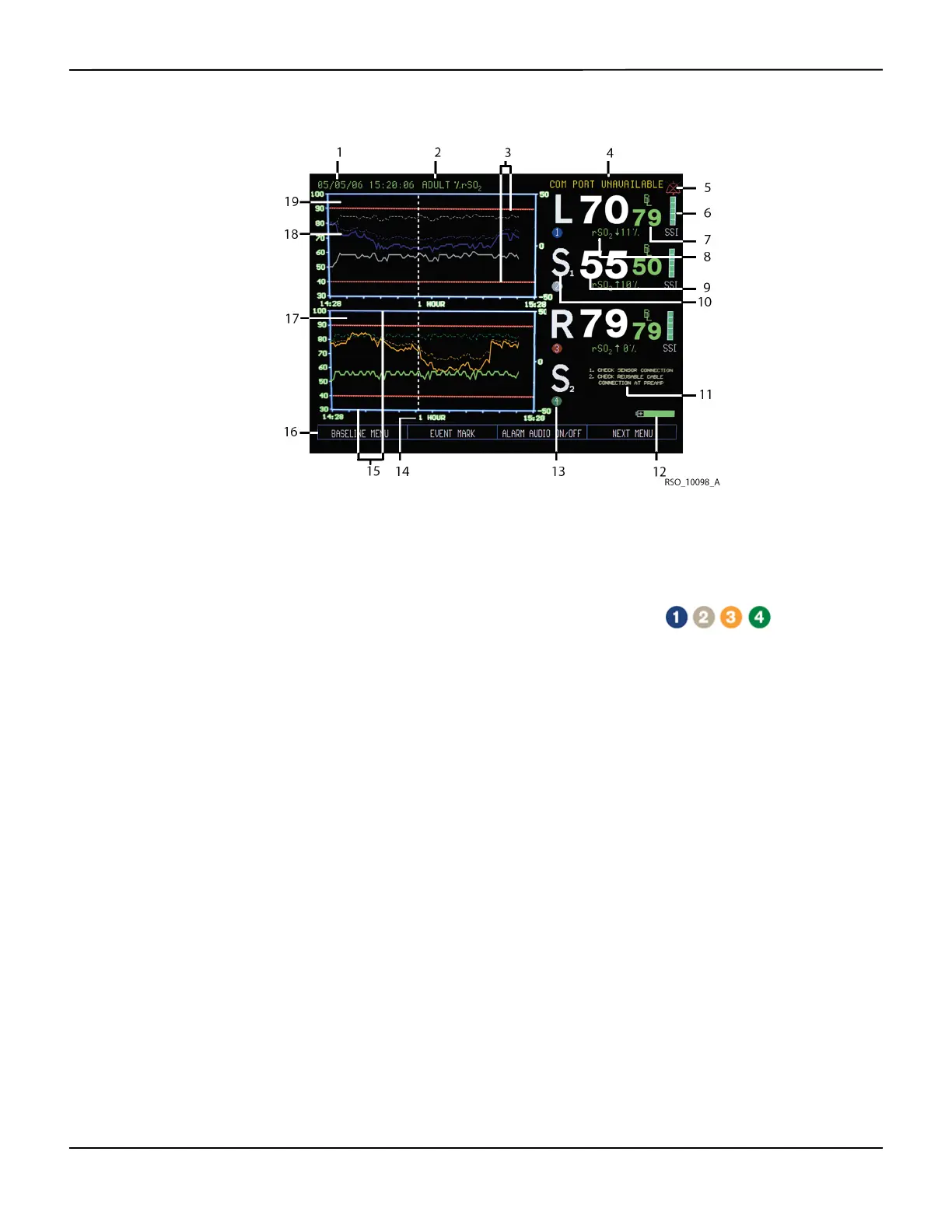

Figure5-5.Main Screen (Four-Channel Monitoring)
 Note:
The data in the data channel area is updated every 5–6 seconds. The data in the graph area is updated
every 30 seconds.
1 Date and time 11 Monitoring status messages
2 Adult, pediatric, or neonatal indication for
sensor model
12 Battery power status
3 Upper and lower alarm limits 13
Channel indicator
4 Alarm status message 14 Time scale, in hours; selectable up to 24 hours
5 Alarm symbol 15 rSO
2
trend (high and low) scale
6 Signal strength indicator 16 Menu options (navigation bar)
7 rSO
2
baseline and symbol 17 Trend data graph (for data channels 3 and 4)
8 rSO
2
relative (%) change from baseline, updated
continuously while monitoring
18 Event mark line and numerical code
9 Real-time rSO
2
values, updated continuously
while monitoring
19 Trend data graph (for data channels 1 and 2)
10 Data channel label (for example, L: left cerebral,
R: right cerebral, S: somatic)
