Overview
Operator's Manual 5-5

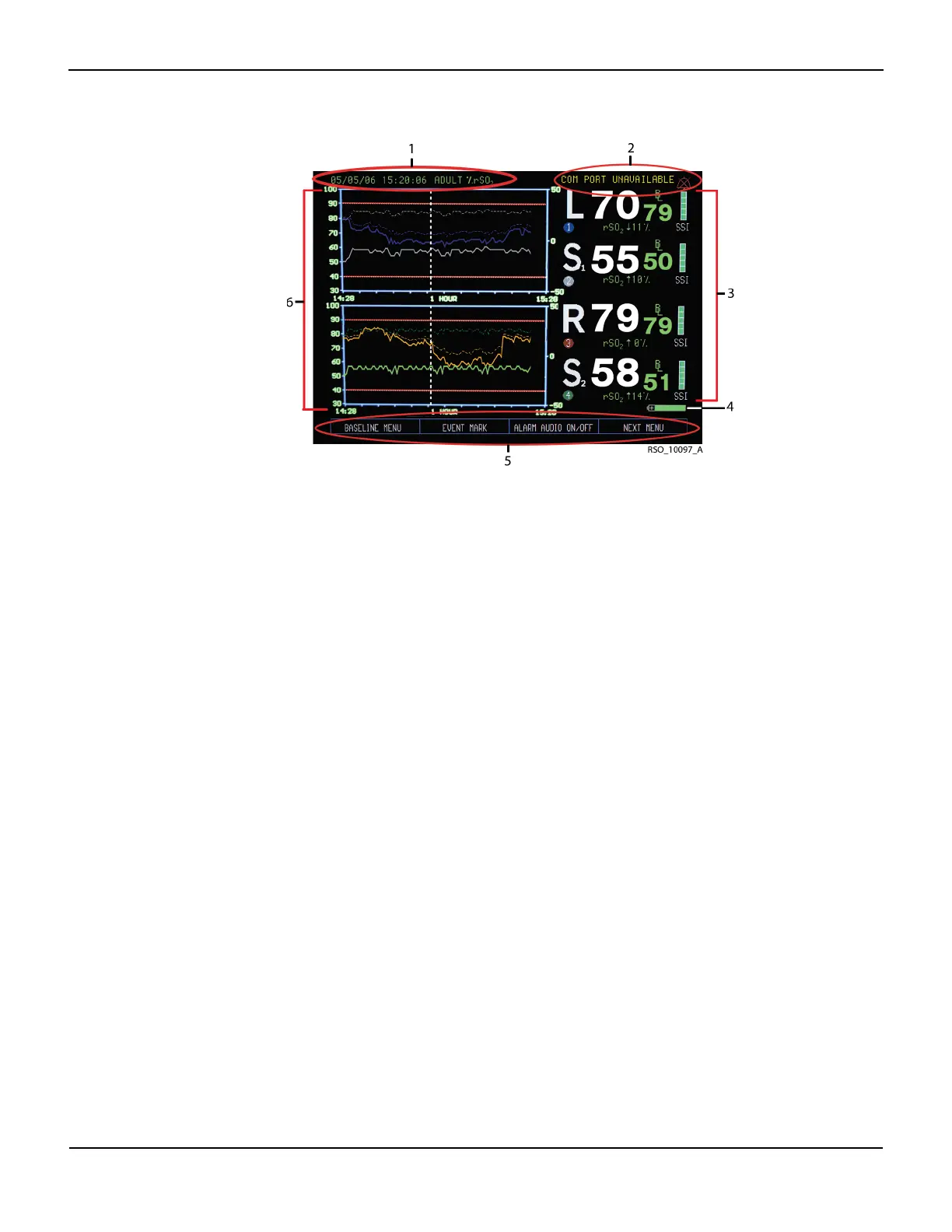

Figure5-4.Main Screen Elements (Two-Channel Monitoring)
1 Date/time and operating status messages area 4 Battery symbol
2 Alarm messages and symbol area 5 Navigation bar (menu options)
3 Data channel area (data channel label, rSO
2
, values, baseline, SSI,
status messages)
6 Trend data graph area
