250

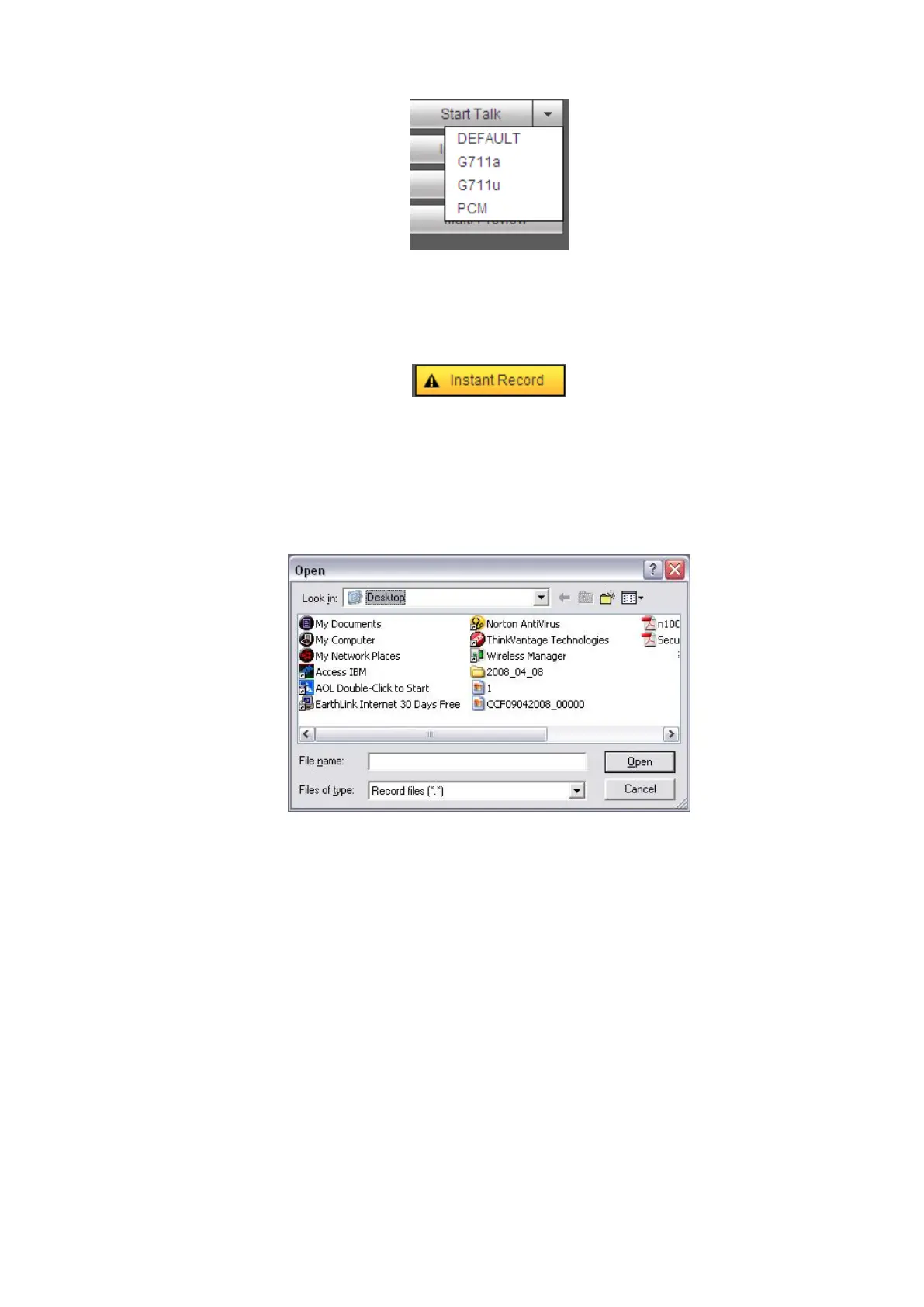

Figure 4-8
Section 4: Instant record button. Click it, the button becomes yellow and system begins manual
record. See Figure 4-9. Click it again, system restores previous record mode.
Figure 4-9
Section 5: Local play button.
The Web can playback the saved (Extension name is dav) files in the PC-end.
Click local play button, system pops up the following interface for you to select local play file. See Figure
4-10.
Figure 4-10
Section 6：Zero-channel encoding.
Section 7: PTZ operation panel.
Section 8:
Section 9: From the left to the right ,you can see video quality/fluency/ full
screen/1-window/4-window/6-window/8-window/9-window/13-window/16-window/20-window/25-win
dow/36-window.. You can set video fluency and real-time feature priority.
WAN Login
In WAN mode, after you logged in, the interface is shown as below. See Figure 4-11.
