4.14.2.2 Verifying Soft Start Fuses
Theinstructionsinthissectioncovertherevision"S"and"T"Closed-TopSoftStarts.
NOTE
TherearenoserviceablefusesonOpen-TopSoftStarts.

TheSoftStartpartnumbersandrevisionsareidentifiedbyalabelonthesideoftheSoftStartmountingbracket.
TheSoftStartrevisionfollowsimmediatelyafterthe6-digitpartnumber.RefertoFigure4-97SoftStartLabel
Locationfordetailsonthelocationofthelabelandtherevisionindicator.

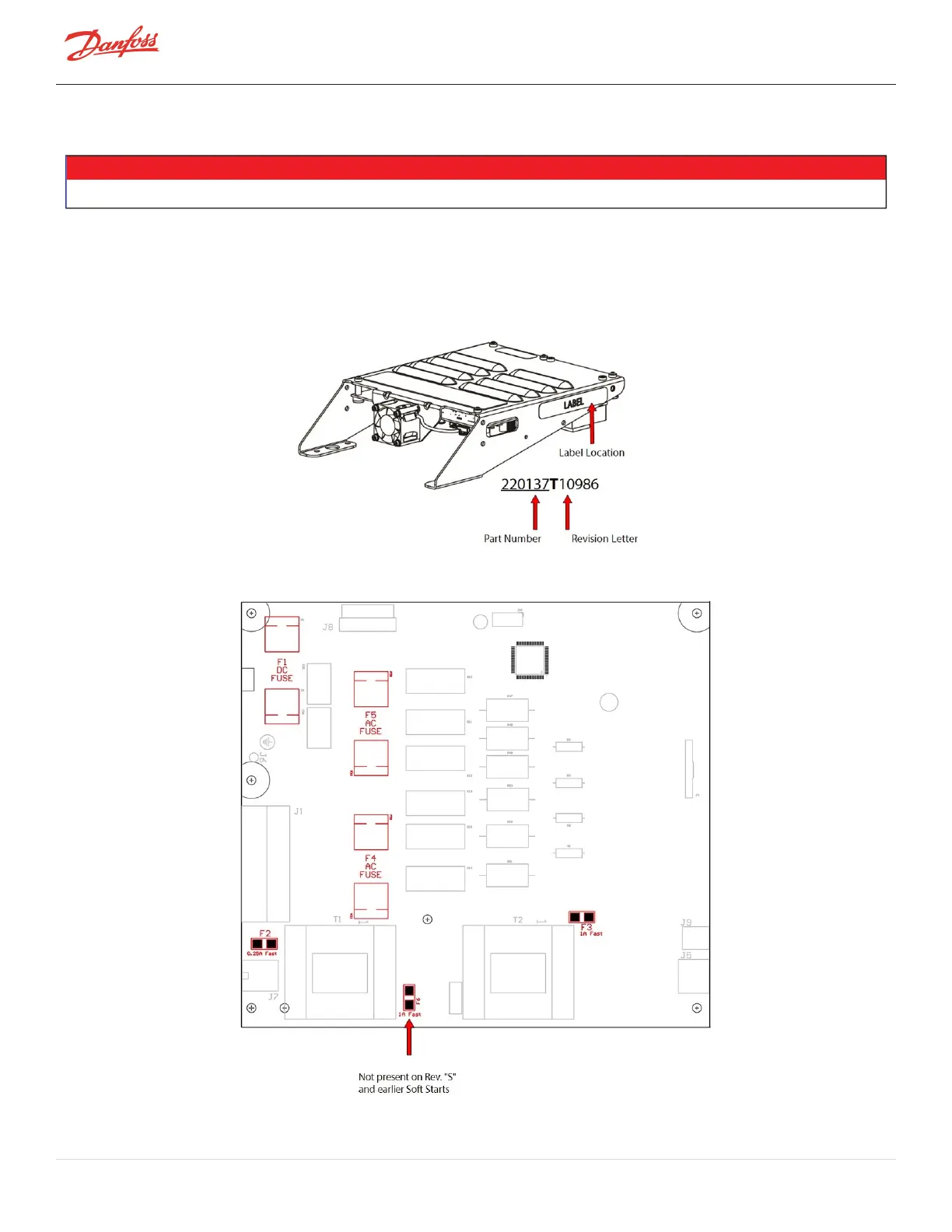

Figure 4-97 Soft Start Label Location
Figure 4-98 Soft Start Fuse Locations
Page 116 of 294 - M-SV-001-EN Rev. H 1/23/2023
