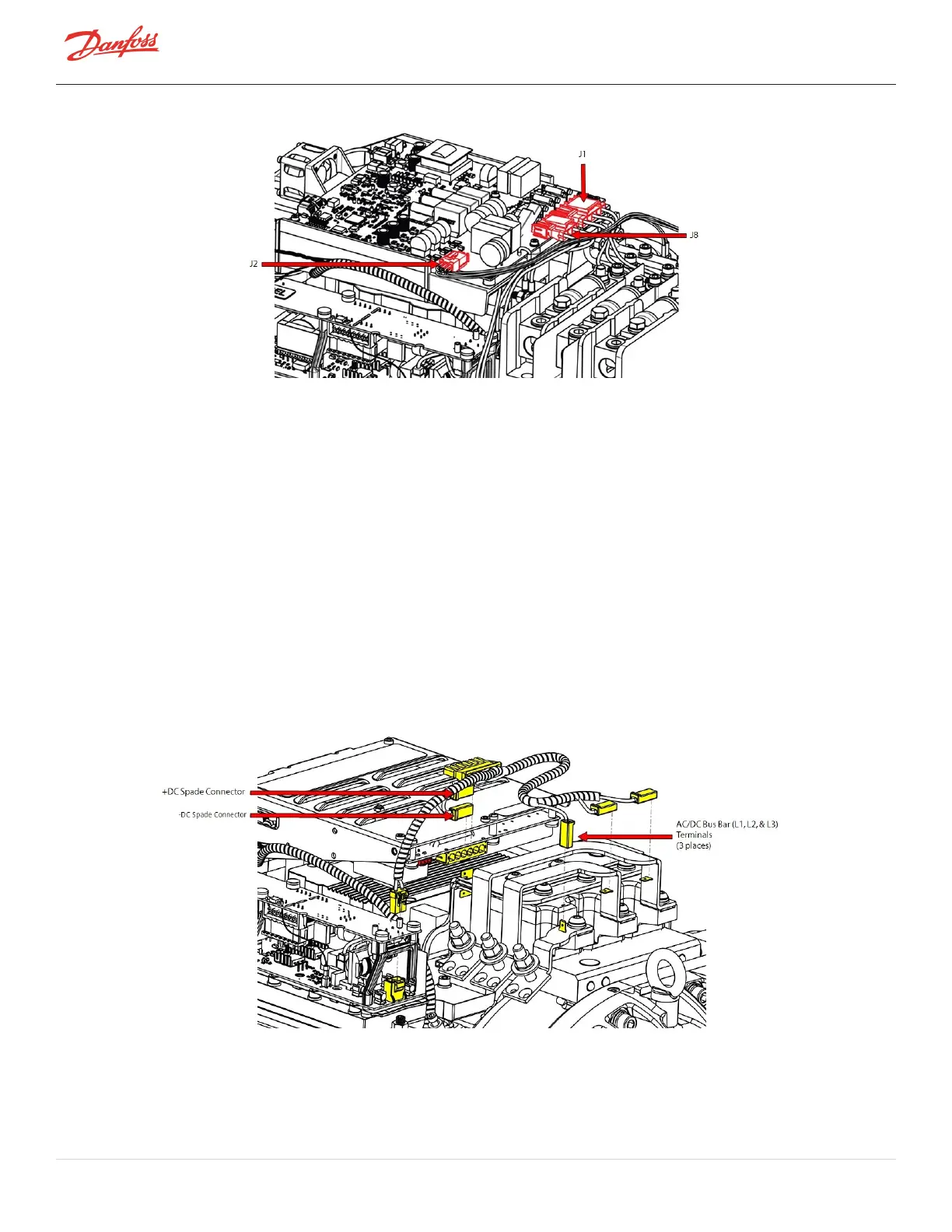

Figure 4-133 Open-Top Soft Start J1 and J8 Removal
8. Removetheharness.

4.17.2.2 Soft Start AC/DC Harness Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
1. IsolatecompressorpowerasdescribedinSection1.8ElectricalIsolationonpage22.
2. DisconnecttheL1,L2,andL3terminalsfromtheACBusBars.
a. ForRevisionFandearliercompressors,refertoFigure4-134ACInputSpadeandDCSpade
ConnectorRemoval-TTS/TGS/TTH/TGHRev.FandEarlier(ExceptTTS300/TGS230).
b. ForRevHcompressors,refertoFigure4-135ACInputRingandDCSpadeConnectorRemoval-
TTS/TGS/TTH/TGHRev.H(ExceptTTS300/TGS230)onpage137.
3. Disconnectthe-DCand+DCspadeterminalsfromtheDCbusbar.
a. ForRevisionFandearliercompressorsrefertoFigure4-134ACInputSpadeandDCSpade
ConnectorRemoval-TTS/TGS/TTH/TGHRev.FandEarlier(ExceptTTS300/TGS230).
b. ForRevHcompressors,refertoFigure4-135ACInputRingandDCSpadeConnectorRemoval-
TTS/TGS/TTH/TGHRev.H(ExceptTTS300/TGS230)onpage137.
Figure 4-134 AC Input Spade and DC Spade Connector Removal - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)

Page 136 of 294 - M-SV-001-EN Rev. H 1/23/2023
