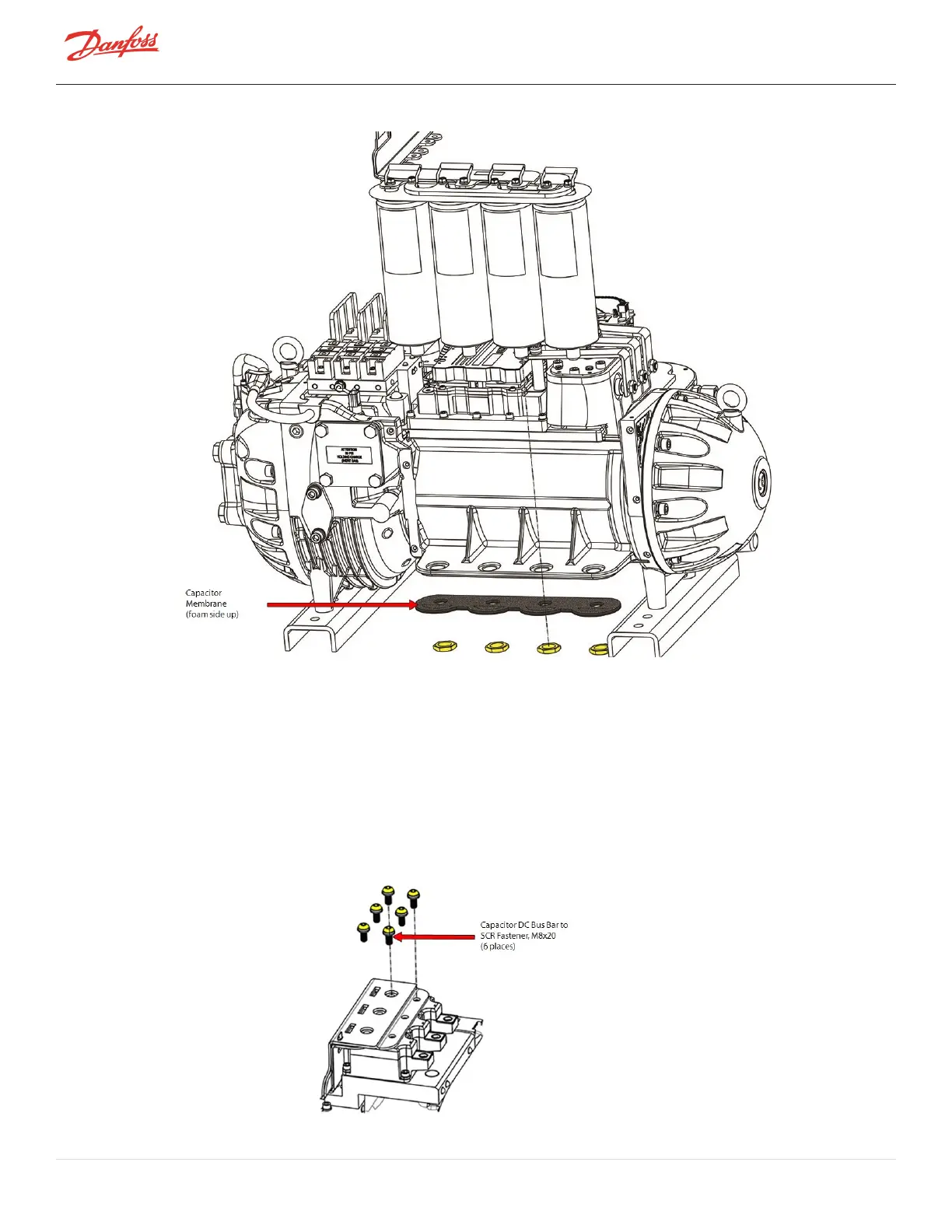

Figure 4-182 Capacitor Assembly Removal - TTS300/TGS230

6. ContinuetoSection4.21.4.3DCCapacitorBusBarAssemblyInstallation-TTS300/TGS230onpage174.
4.21.4.2 DC Capacitor Bus Bar Assembly Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
1. RemovetheMainsACBusBarsasdescribedinSection4.12.1InputMainsBusBarRemovalonpage
108.
2. Removethesix(6)DCbusfastenersfromtheSCRs.RefertoFigure4-183SCRBusBarRemoval-
TTS/TGS/TTH/TGHRev.FandEarlier(ExceptTTS300/TGS230)orFigure4-184SCRBusBarRemoval-
TTS/TGS/TTH/TGHRev.H(ExceptTTS300/TGS230)onpage171.
Figure 4-183 SCR Bus Bar Removal - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)
Page 170 of 294 - M-SV-001-EN Rev. H 1/23/2023
