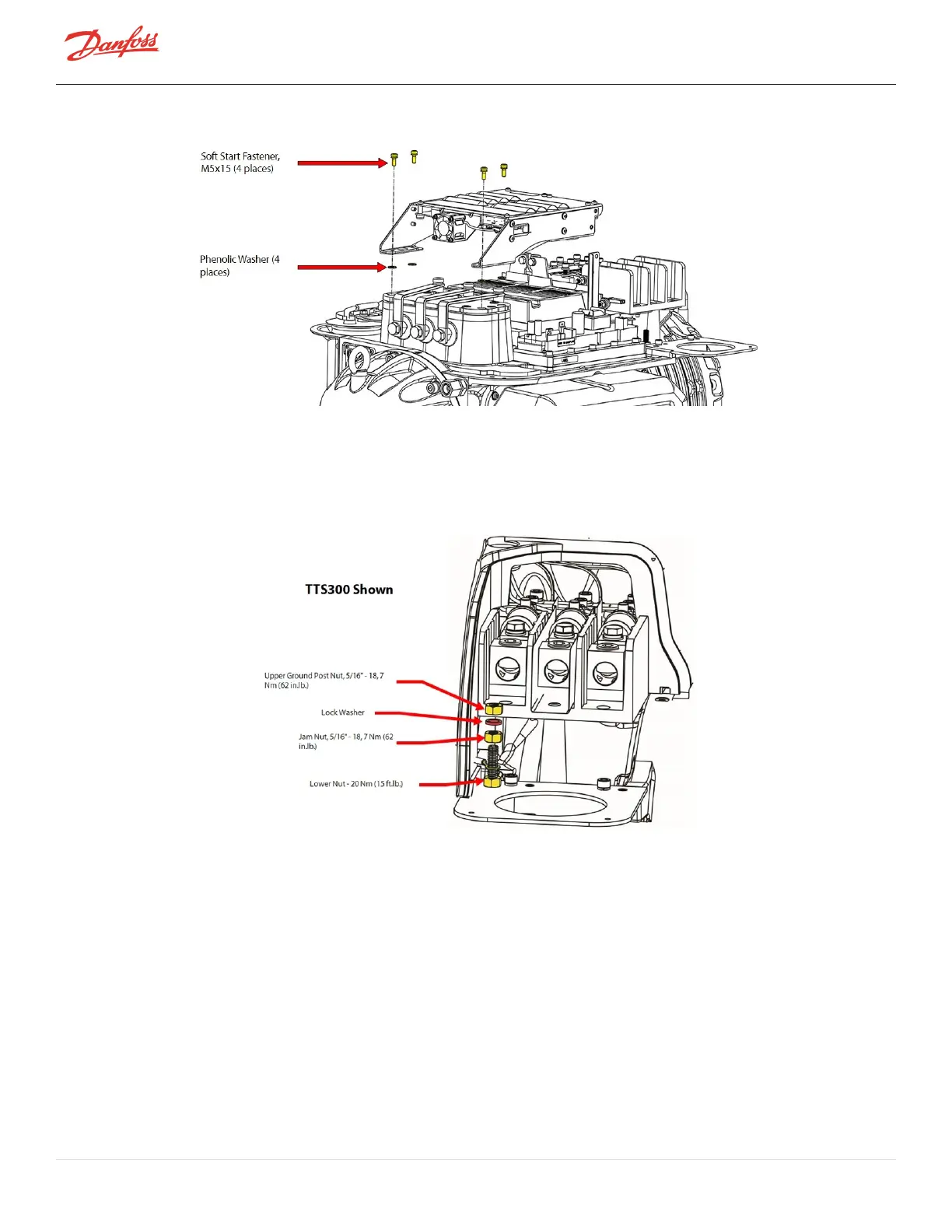

Figure 4-108 Closed-Top-Soft Start Installation
5. InstalltheJ9SoftStartTemperatureSensorconnector.RefertoFigure4-99Closed-TopSoftStartJ9
Connectoronpage118.
6. ConnecttheSoftStartgroundwireandmainsinputgroundwireontothegroundpostonthe
compressorhousingandinstallthespringwasherandnut,thentorquethetopnutto7Nm(62in.lb.).
Figure 4-109 Ground Stud Location
7. Installthetopcovers.RefertoSection4.1CompressorCoversonpage52.
8. Returnthecompressortonormaloperation.
4.14.7 Soft Start Installation (Open-Top)
1. PlacetheSoftStartintomountingposition.
2. Fingertightenthefastenersandthentorqueto5Nm(44in.lb.).RefertoFigure4-110Open-TopSoft
StartInstallationonpage123.
3. InstallconnectorsJ1,J2,andJ8.

Page 122 of 294 - M-SV-001-EN Rev. H 1/23/2023
