Danfoss Turbocor TT Series User Manual

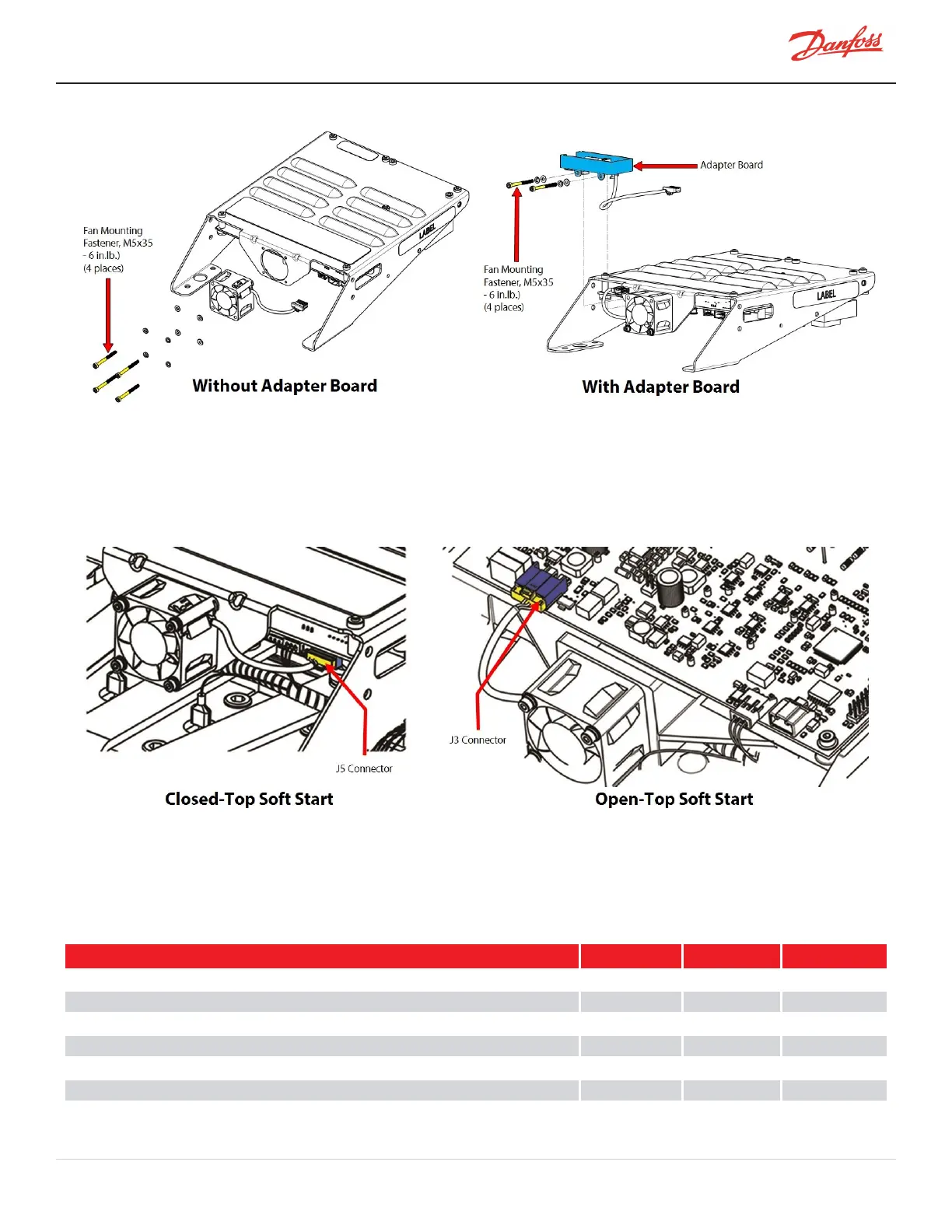

Figure 4-113 Soft Start Fan Installation
3. PlugtheconnectorofthenewfanintotheSoftStartBoard.RefertoFigure4-114SoftStartFan
Connector.
l
J5ontheClosed-TopSoftStart
l
J3ontheOpen-TopSoftStart
Figure 4-114 Soft Start Fan Connector
4. Installthetopcovers.RefertoSection4.1CompressorCoversonpage52.
5. Returnthecompressortonormaloperation.
4.14.10.1 Soft Start Torque Specifications
Table 4-25 Soft Start Torque Specifications
Description Nm Ft.Lb. In.Lb.
SoftStartfastener,M5x15orM5x20 5 - 44
SoftStartFanfastener,M5x35 - - 6
UpperNut,5/16"-18UNC 7 - 62
JamNut,5/16"-18UNC 7 - 62
LowerNut,5/16"-18UNC 20 15 177
CoverFastener,M5x15 1.5 - 13

M-SV-001-EN Rev. H-1/23/2023 Page 125 of 294
