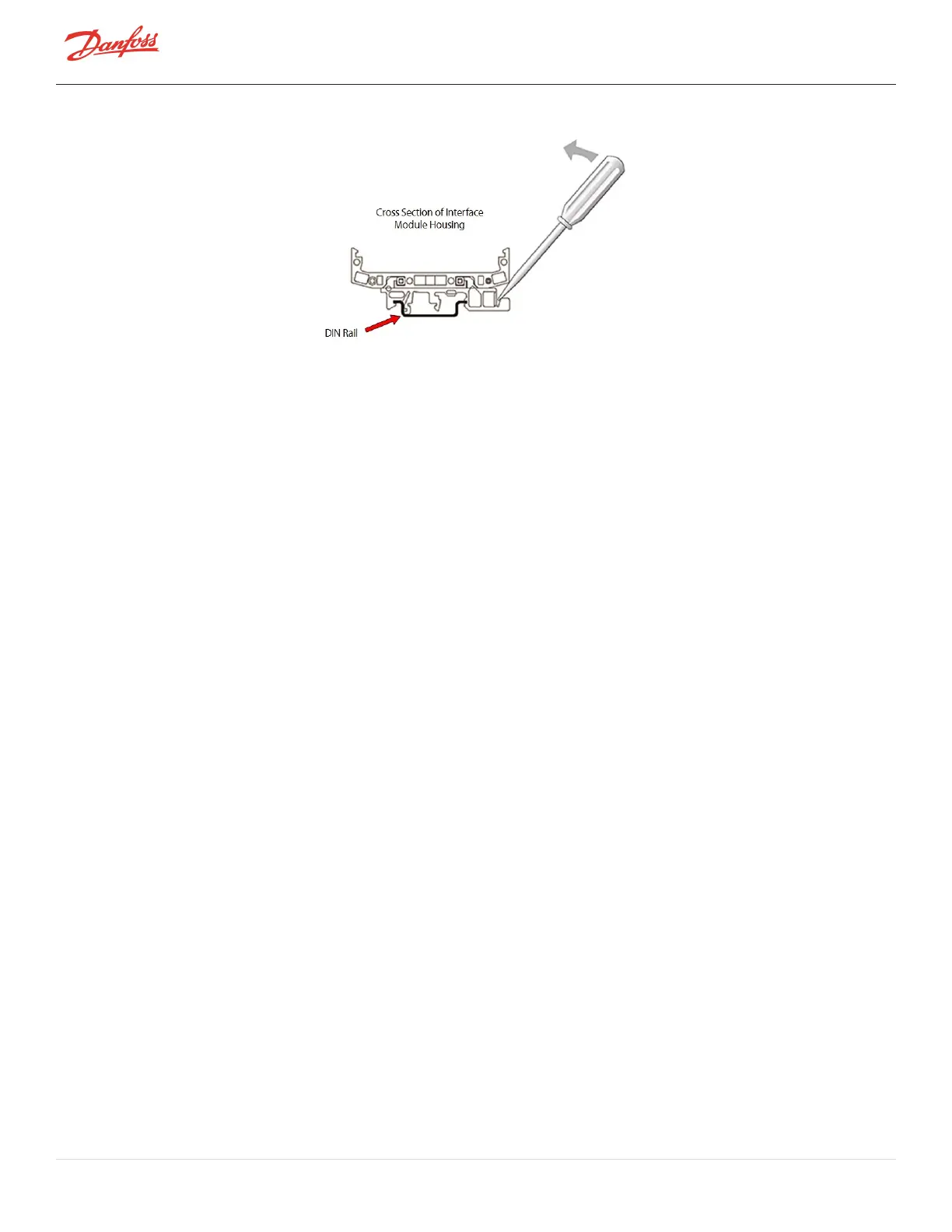

Figure 4-19 Removing the Compressor Interface Module from the DIN Rail
4.3.3.2 Compressor I/O Board Installation
1. Installtheleftfootofthereplacementboardintotherailandpresstherightsideoftheboarddown
untilitengagestherail.
2. ReconnectallexternalconnectionsandwiringontheCIM.
3. Returnthecompressortonormaloperation.

