Danfoss Turbocor TT Series

Appendix B Compressor Troubleshooting Flowcharts
ThisappendixcontainsflowchartsforCompressorOperationTroubleshooting(FigureB-1CompressorOperation
TroubleshootingFlowchart(Sheet1))andCompressorVoltageTroubleshooting(FigureB-3CompressorVoltage
TroubleshootingFlowchart(Sheet1)).

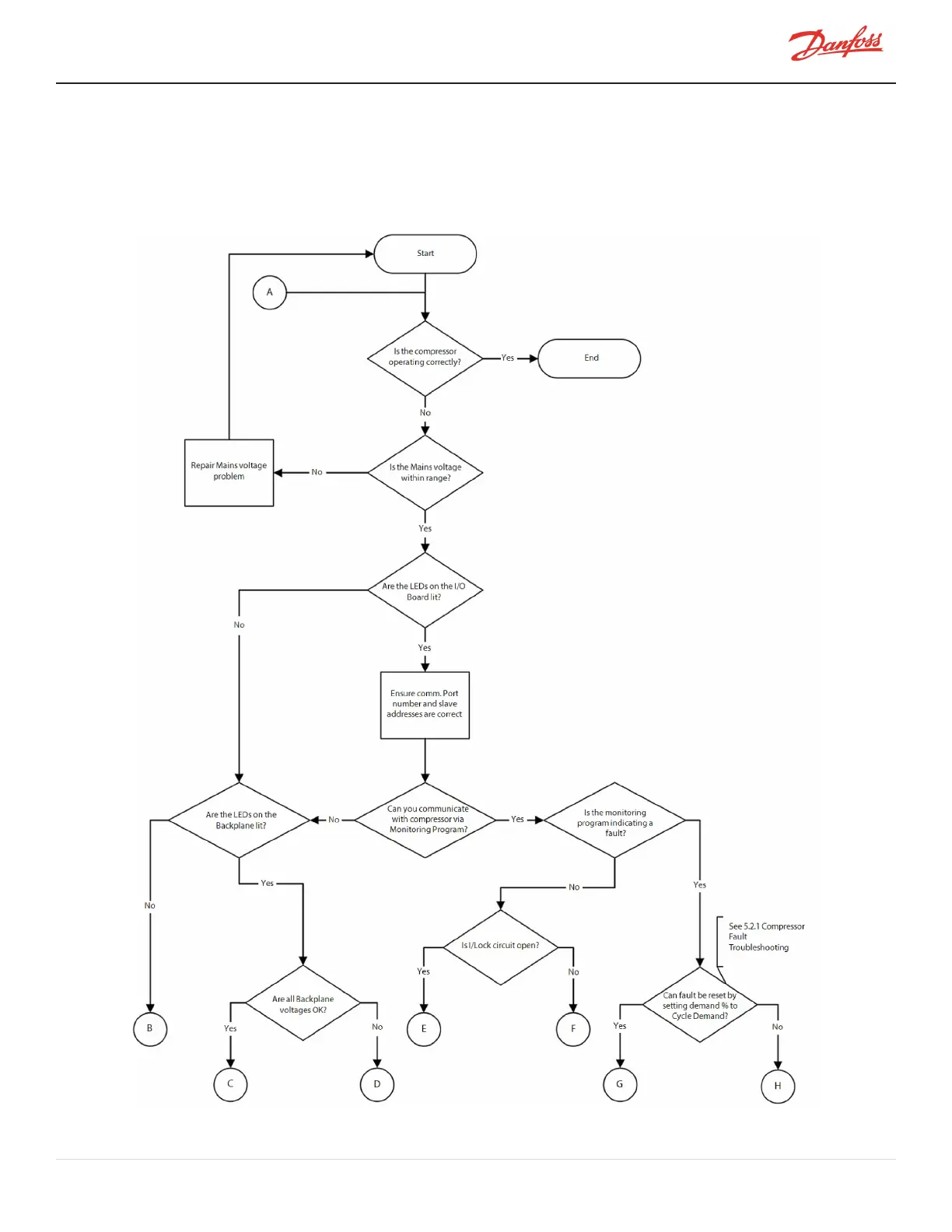

Figure B-1 Compressor Operation Troubleshooting Flowchart (Sheet 1)

