Danfoss Turbocor TT Series User Manual

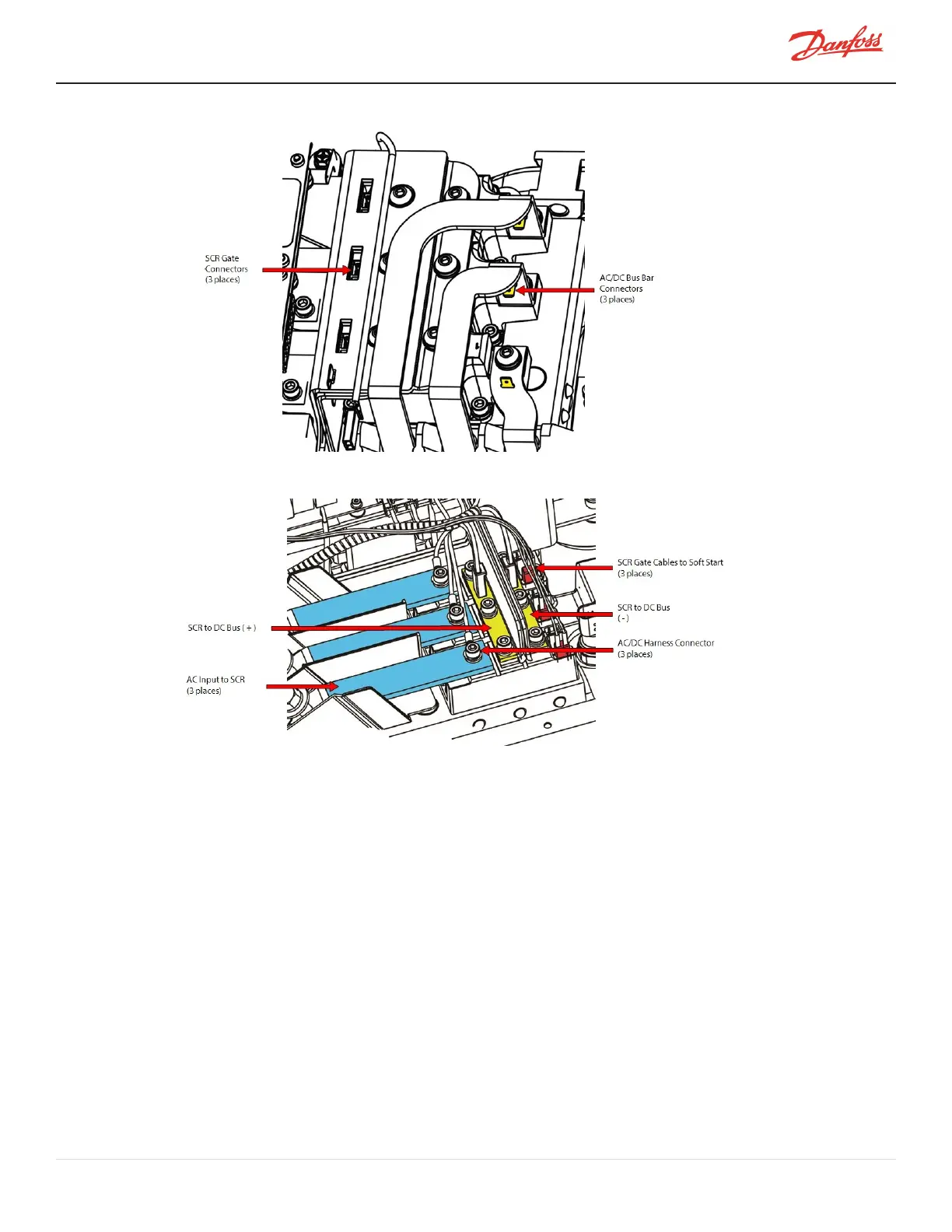

Figure 4-156 -SCR Gate Cable and AC/DC Harness Connections - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)
Figure 4-157 SCR Gate Cable and AC/DC Harness Connections - TTS/TGS/TTH/TGH Rev. H (Except TTS300/TGS230)
3. RemovetheACmainsinputterminalsandbusbars.RefertoSection4.11.23-PhaseMainVoltageInput
TerminalBlockRemovalandInstallationonpage102.
4. RemovetheSnubberCapacitorsfromtheInverter.RefertoSection4.20SnubberCapacitorsonpage
164.
5. DisconnecttheDCBusBarfromtheSCRsandremovetheDCCapacitorBusBarAssembly.Referto
Section4.21.3DCCapacitorBusBarAssemblyRemovalandInstallationonpage168.

M-SV-001-EN Rev. H-1/23/2023 Page 151 of 294
