Danfoss Turbocor TT Series User Manual

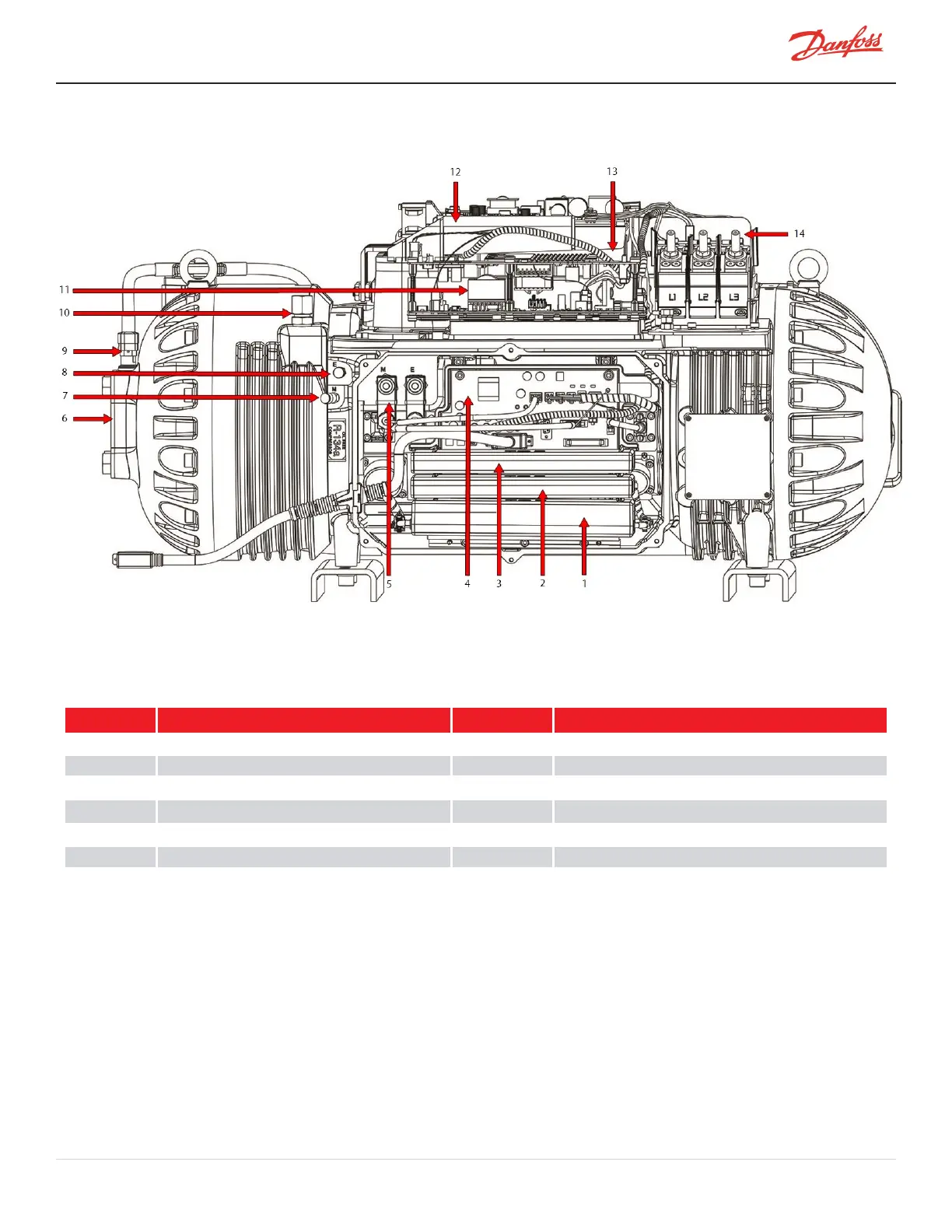

Figure 4-3 Compressor Component Identification (TTH/TGH Only)



Table 4-3 Compressor Components Service Side (TTH/TGH Only)
No. Component No. Component
1 PWMAmplifier 8 CompressorCoolingAccessPort
2 BMCC 9 SuctionPressure/TemperatureSensor
3 SerialDriver 10 CoolingInletAdapter
4
Backplane
11 DC-DCConverter
5 Motor-CoolingSolenoids 12 SoftStart
6 IGVSuctionPort 13 Inverter
7 CompressorCoolingAccessPort 14 ACMainsBusBars







M-SV-001-EN Rev. H-1/23/2023 Page 49 of 294
