AGC Designer’s Reference Handbook
DEIF A/S Page 68 of 168
Analogue tacho feedback
When a magnetic pick-up is being used, the specific level of revolutions for deactivation of the
start relay can be adjusted.
Running feedback.

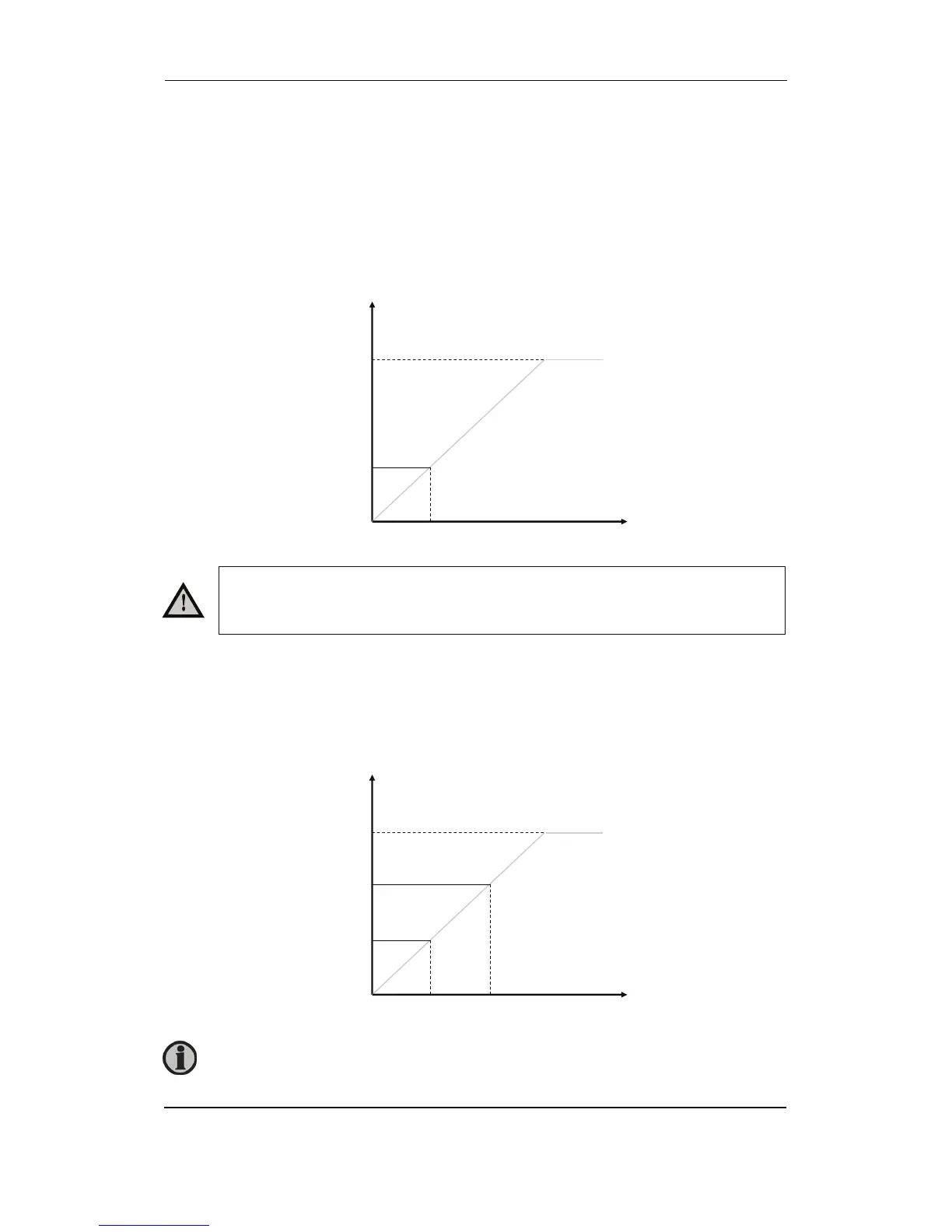

The diagram below shows how the running feedback is detected at the firing speed level. The
factory setting is 1000 RPM
(4300 Running detection
)
.
Remove starter input
The drawing below shows how the setpoint of the remove starter is detected at the firing speed
level. The factory setting is 400 RPM
(6160 Remove starter
)
.
Run. feedback,
menu 4301
RPM
Firing speed
The number of teeth on the flywheel must be adjusted when the tacho input is
used (6160 Remove starter
).
Notice that the factory setting of 1000 RPM is higher than the RPM level of
starter motors of typical design. Adjust this value to a lower value to avoid
damage of the starter motor.
