Configuring Differentiated Services 1293

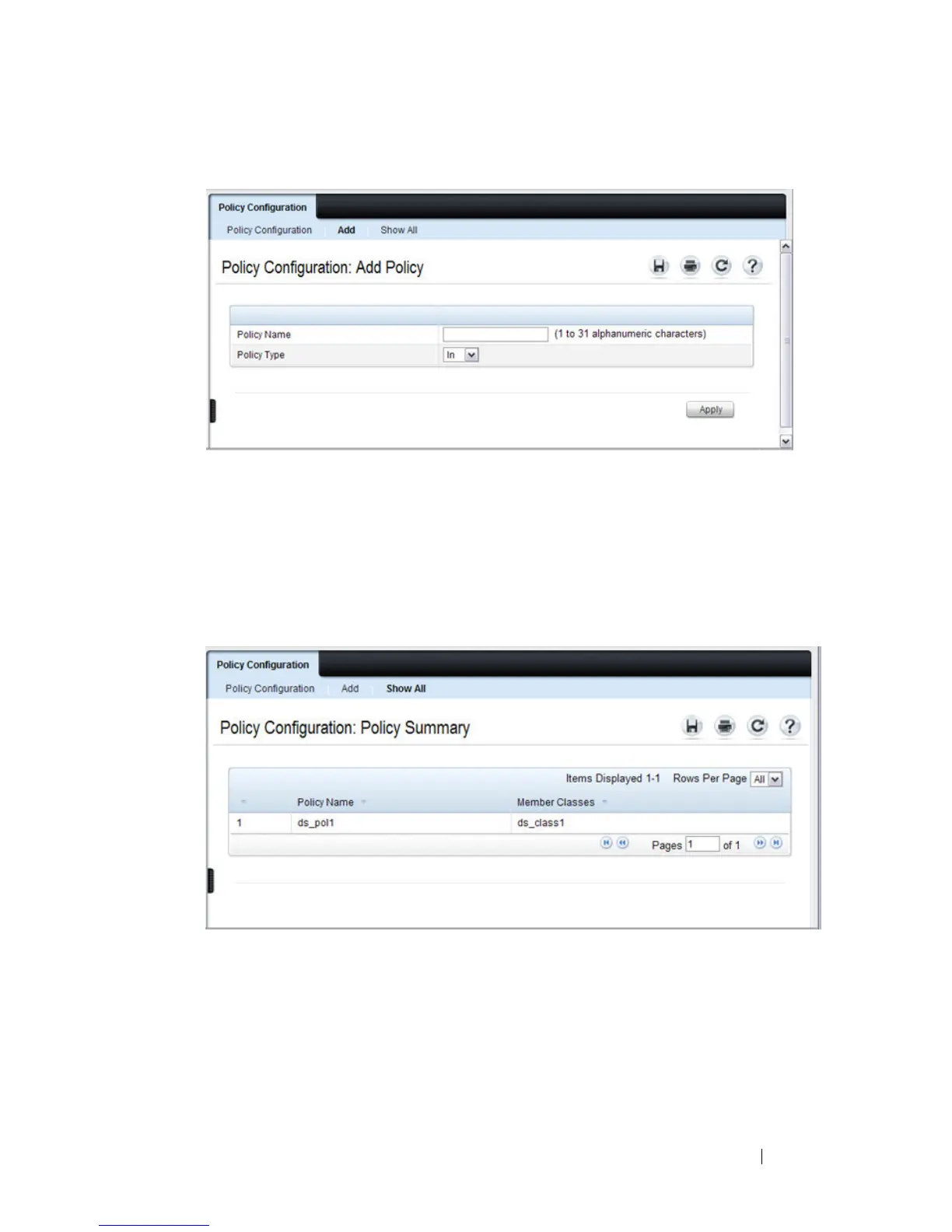

Figure 40-7. Add DiffServ Policy

2

Enter the new

Policy Name

.

3

Click

Apply

to save the new policy.

4

To view a summary of the policies configured on the switch, click

Show

All

.

Figure 40-8. View DiffServ Policies
