Dell Networking N4000 Series User Manual

1322 Configuring Class-of-Service

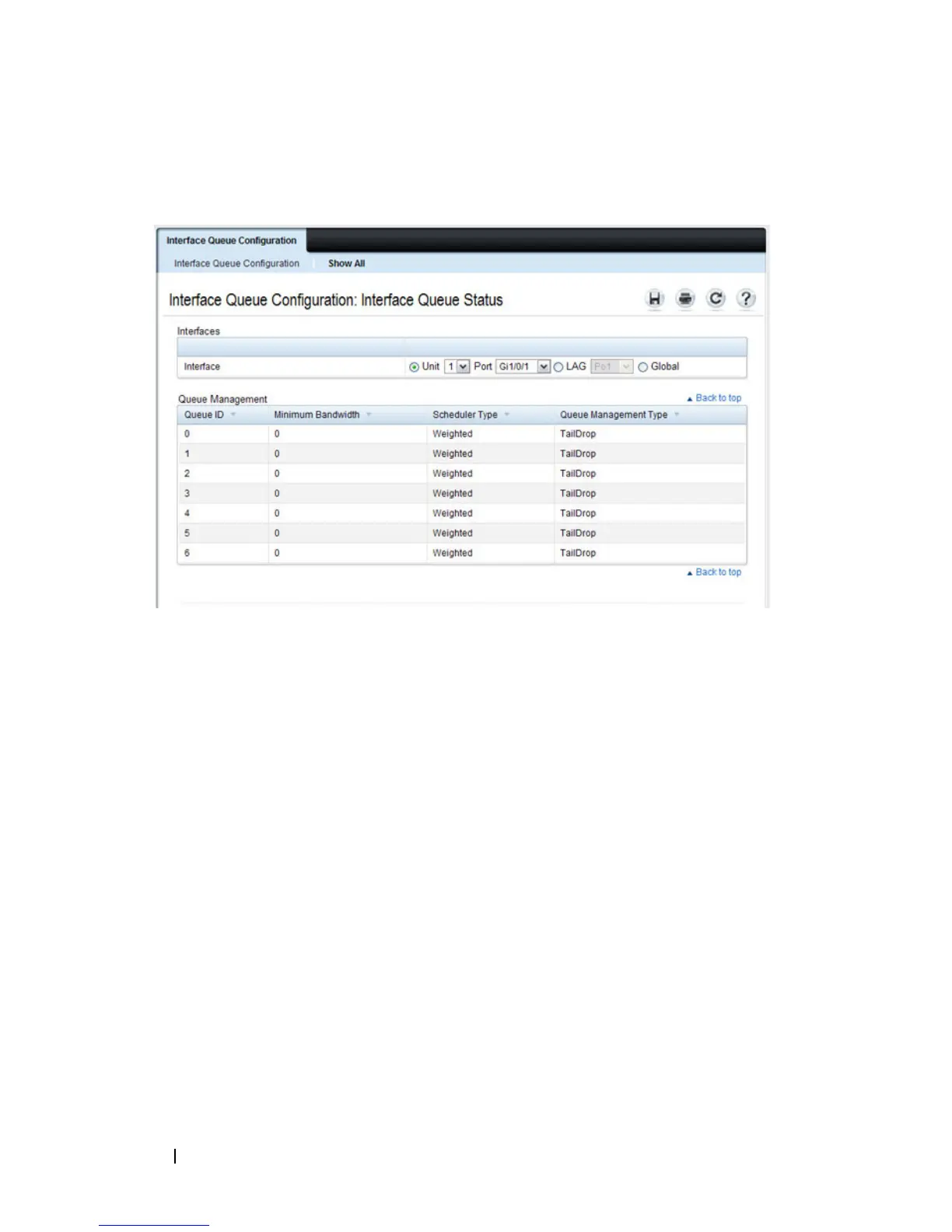

To access the Interface Queue Status page, click the Show All link at the top
of the page.
Interface Queue Drop Precedence Configuration
Use the Interface Queue Drop Precedence Configuration page to configure
thresholds and scaling values for each of four drop precedence levels on a
WRED-enabled interface queue. The settings you configure control the
minimum and maximum thresholds and a drop probability scaling factor for
the selected drop precedence level.
These parameters can be applied to each drop precedence level on a per-
interface-queue basis, or can be set globally for the same drop precedence
level and queue ID on all interfaces.
To display the
Interface Queue Drop Precedence Configuration page, click
Quality of Service
→ Class of Service → Interface Queue Drop Precedence
Configuration in the navigation panel.

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
