Dell Networking N4000 Series User Manual

Configuring VLANs 679
Double VLAN Interface Configuration
Use the Double VLAN Interface Configuration page to specify the value of
the EtherType field in the first EtherType/tag pair of the double-tagged
frame.
To display the Double VLAN Interface Configuration page, click Switching
→ VLAN → Double VLAN → Interface Configuration in the navigation
panel.

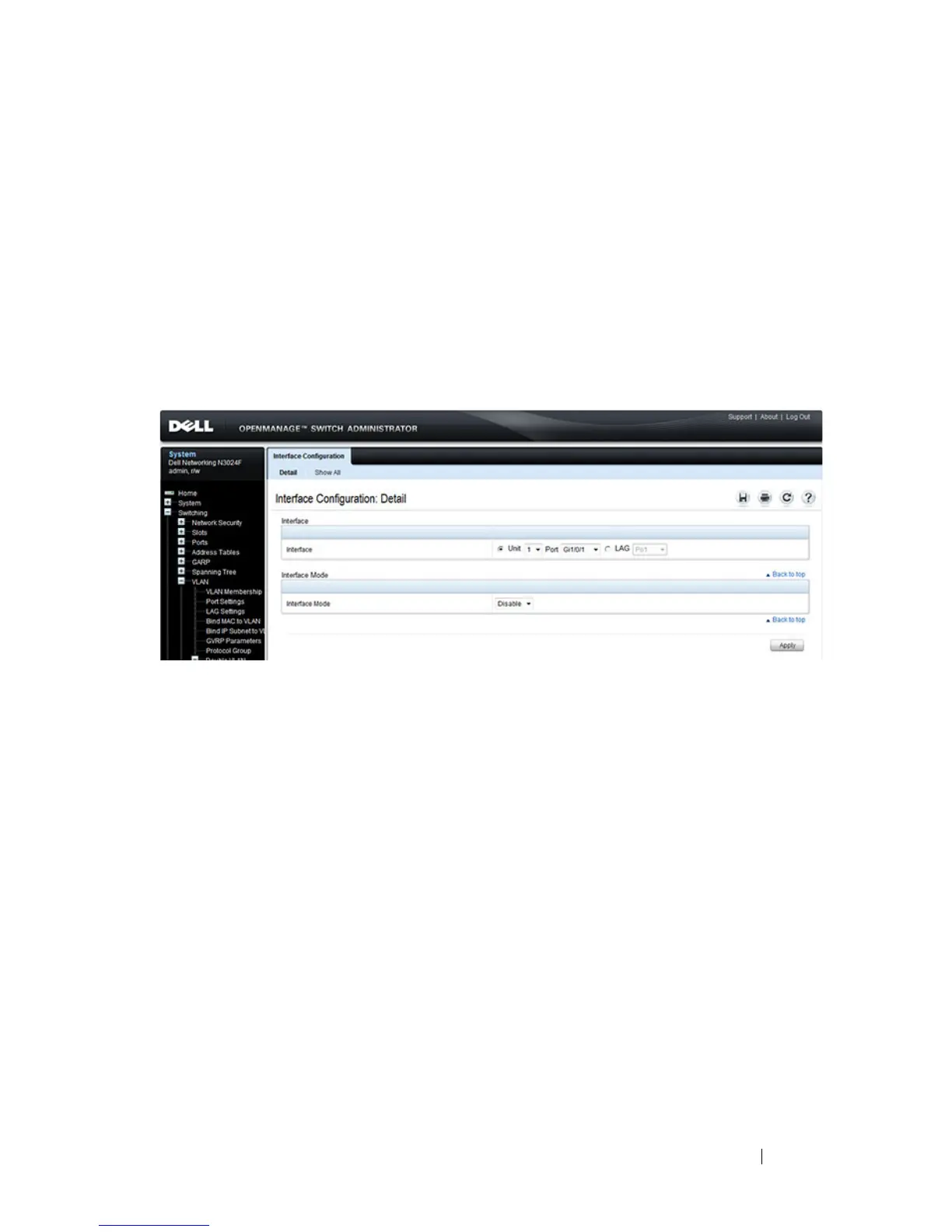

Figure 21-23. Double VLAN Interface Configuration
To view a summary of the double VLAN configuration for all interfaces and to
edit settings for one or more interfaces, click Show All.

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
