Dell Networking N4000 Series User Manual

430 Monitoring Switch Traffic
RMON Event Control
Use the RMON Events Control page to define RMON events. Events are
used by RMON alarms to force some action when a threshold is crossed for a
particular RMON counter. The event information can be stored in a log
and/or sent as a trap to a trap receiver.
To display the page, click Statistics/RMON
→ RMON → Event Control in
the navigation panel.

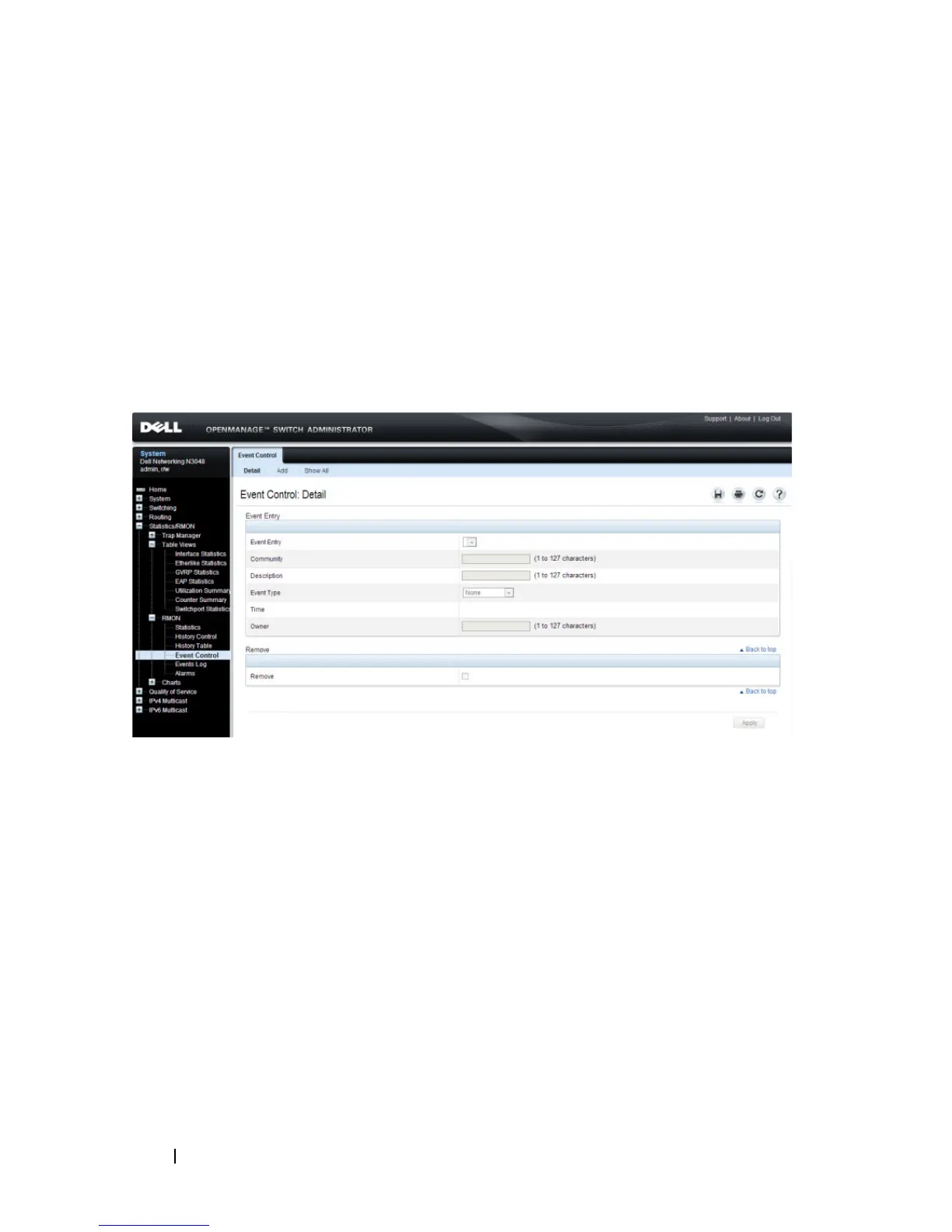

Figure 16-17. RMON Event Control
Adding an RMON Event
To add an event:
1
Open the RMON Event Control page.
2 Click Add .
The
Add an Event Entry page displays.
