Dell Networking N4000 Series User Manual

Monitoring Switch Traffic 433
RMON Alarms
Use the RMON Alarms page to set network alarms. Alarms occur when
certain thresholds are crossed for the configured RMON counters. The alarm
triggers an event to occur. The events can be configured as part of the RMON
Events group. For more information about events, see "RMON Event Log" on
page 432.
To display the page, click Statistics/RMON
→ RMON → Alarms in the
navigation panel.

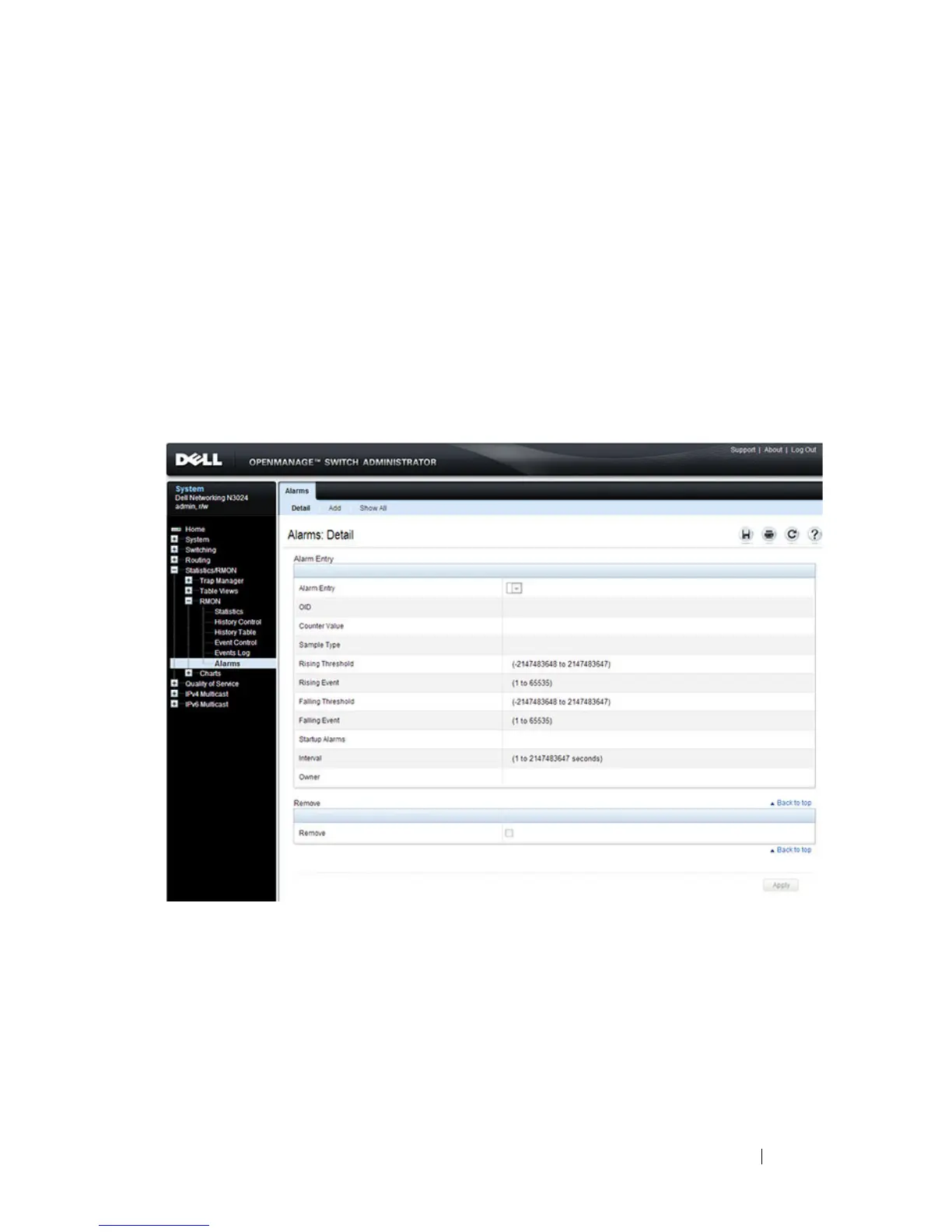

Figure 16-20. RMON Alarms

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
