Dell Networking N4000 Series User Manual

Configuring L2 Multicast Features 837
MVR Members
Use the MVR Members page to view and configure MVR group members. To
display the MVR Members page, click Switching
→ MVR Configuration →
MVR Members in the navigation panel.

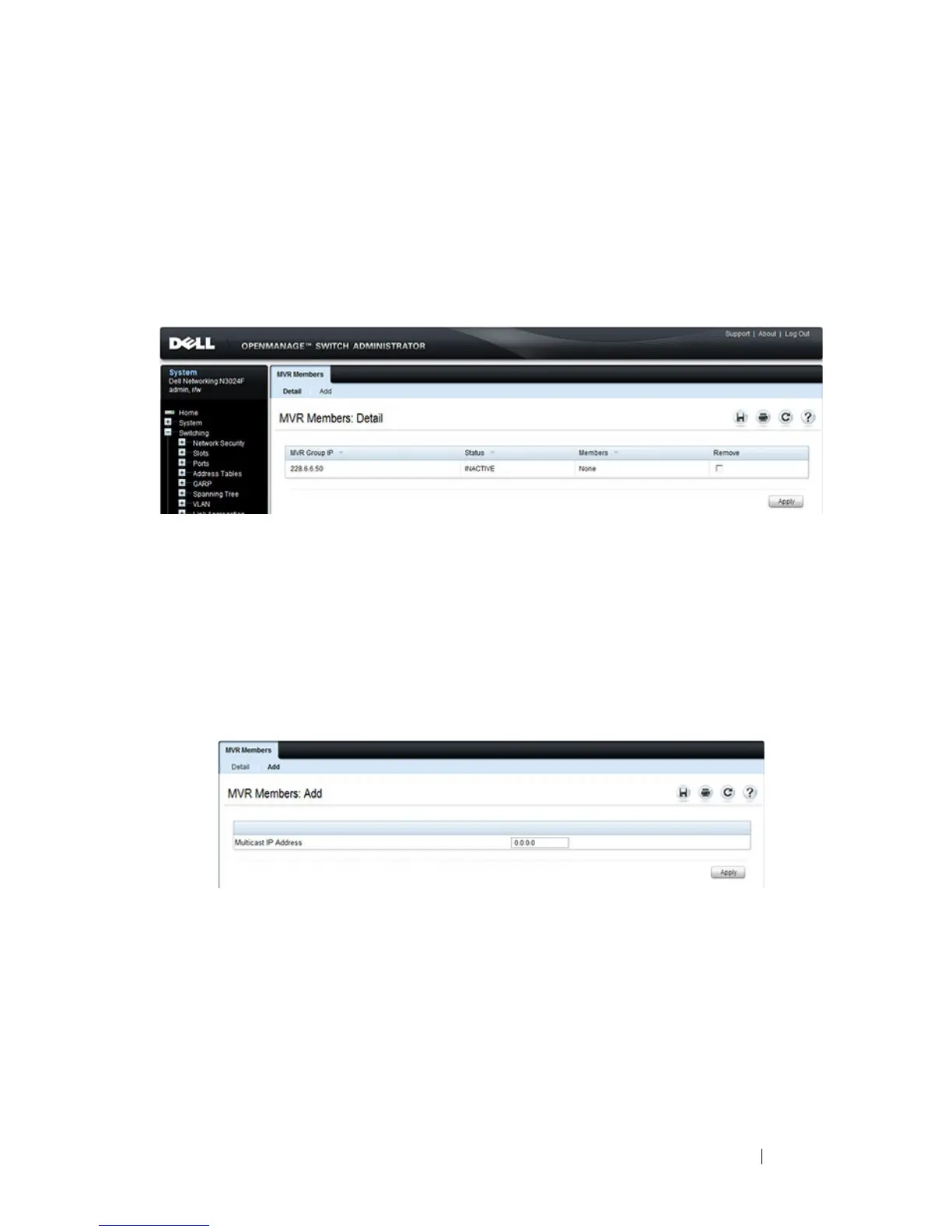

Figure 25-23. MVR Members
Adding an MVR Membership Group
To add an MVR membership group:
1
From the MVR Membership page, click Add .
The MVR
Add Group page displays.
Figure 25-24. MVR Member Group
2 Specify the MVR group IP multicast address.
3 Click Apply .

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
