Dell Networking N4000 Series User Manual

902 Snooping and Inspecting Traffic

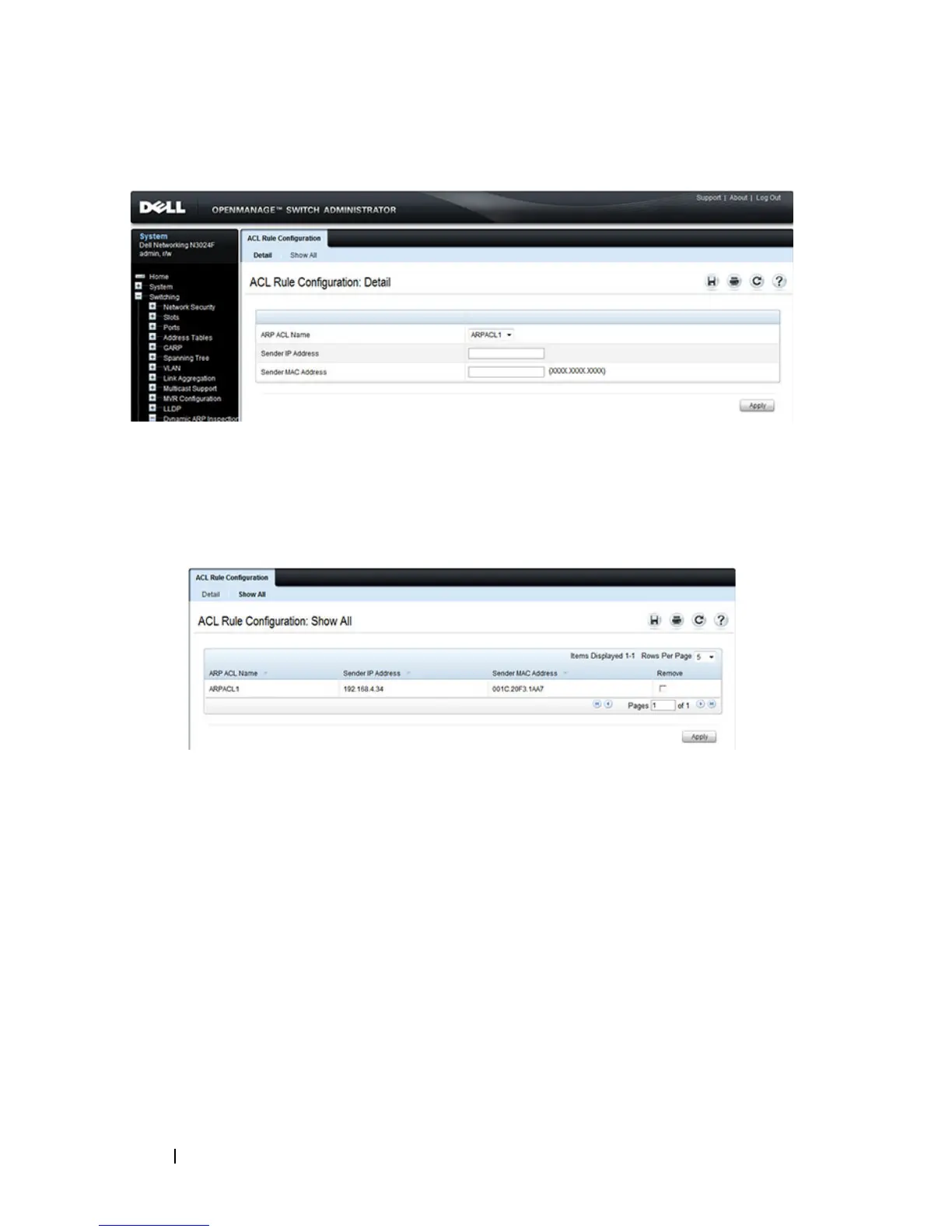

Figure 27-22. Dynamic ARP Inspection Rule Configuration
To view a summary of the ARP ACL rules that have been created, click Show
All.
Figure 27-23. Dynamic ARP Inspection ACL Rule Summary
To remove an ARP ACL rule, select the Remove checkbox associated with the
rule and click Apply.
DAI Statistics
Use the DAI Statistics page to display the statistics per VLAN.
To display the DAI Statistics page, click Switching
→ Dynamic ARP
Inspection
→ Statistics in the navigation panel.

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
