Dell Networking N4000 Series User Manual

796 Configuring Port-Based Traffic Control

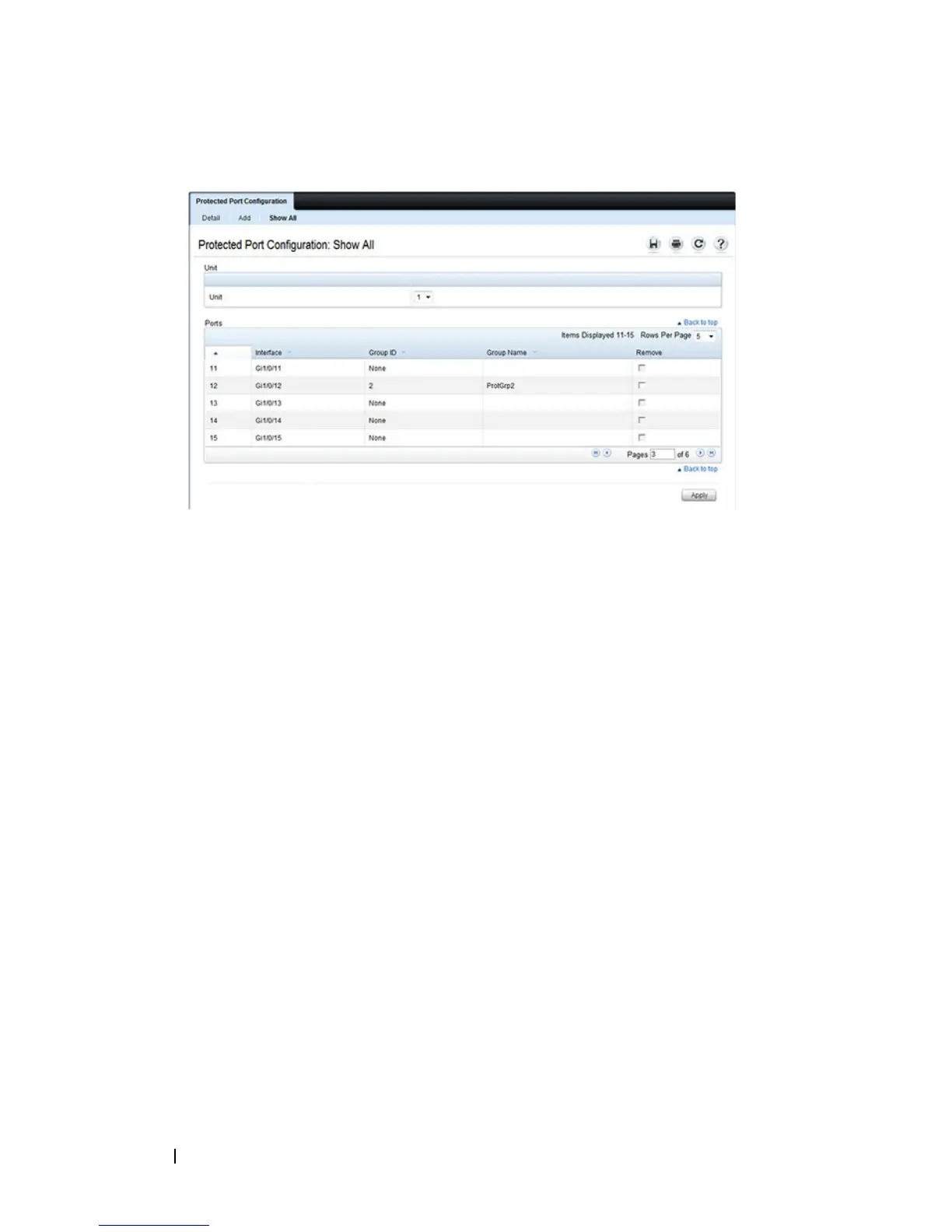

Figure 24-7. View Protected Port Information
11 To remove a port from a protected port group, select the Remove check
box associated with the port and click
Apply .
LLPF Configuration
Use the LLPF Interface Configuration page to filter out various proprietary
protocol data units (PDUs) and/or ISDP if problems occur with these
protocols running on standards-based switches.
To display the LLPF Interface Configuration page, click Switching
→
Network Security
→ Proprietary Protocol Filtering → LLPF Interface
Configuration the navigation menu.

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
