Dell Networking N4000 Series User Manual

Configuring Port-Based Traffic Control 795

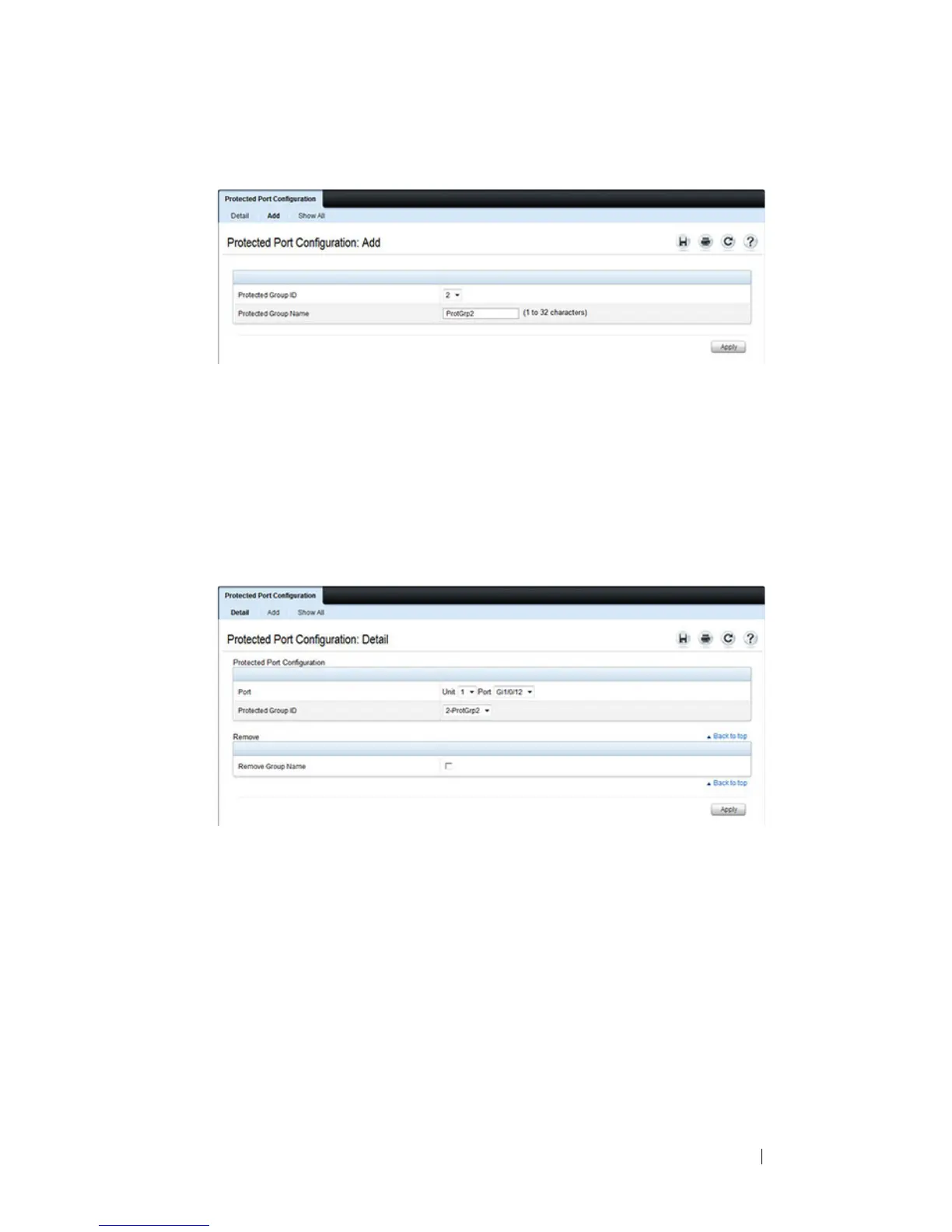

Figure 24-5. Add Protected Ports Group
5 Click Apply .
6 Click Protected Port Configuration to return to the main page.
7
Select the port to add to the group.
8 Select the protected port group ID.
Figure 24-6. Add Protected Ports
9 Click Apply .
10 To view protected port group membership information, click Show All .

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
