Dell Networking N4000 Series User Manual

1386 Managing IPv4 and IPv6 Multicast
Candidate RP Configuration
The Candidate RP is configured on the Add Candidate RP page. Use the
Candidate RP Configuration page to display and delete the configured
rendezvous points (RPs) for each port using PIM.
To access the page, click IPv4 Multicast
→ PIM → Candidate RP
Configuration or IPv6 Multicast
→ PIM → Candidate RP Configuration.

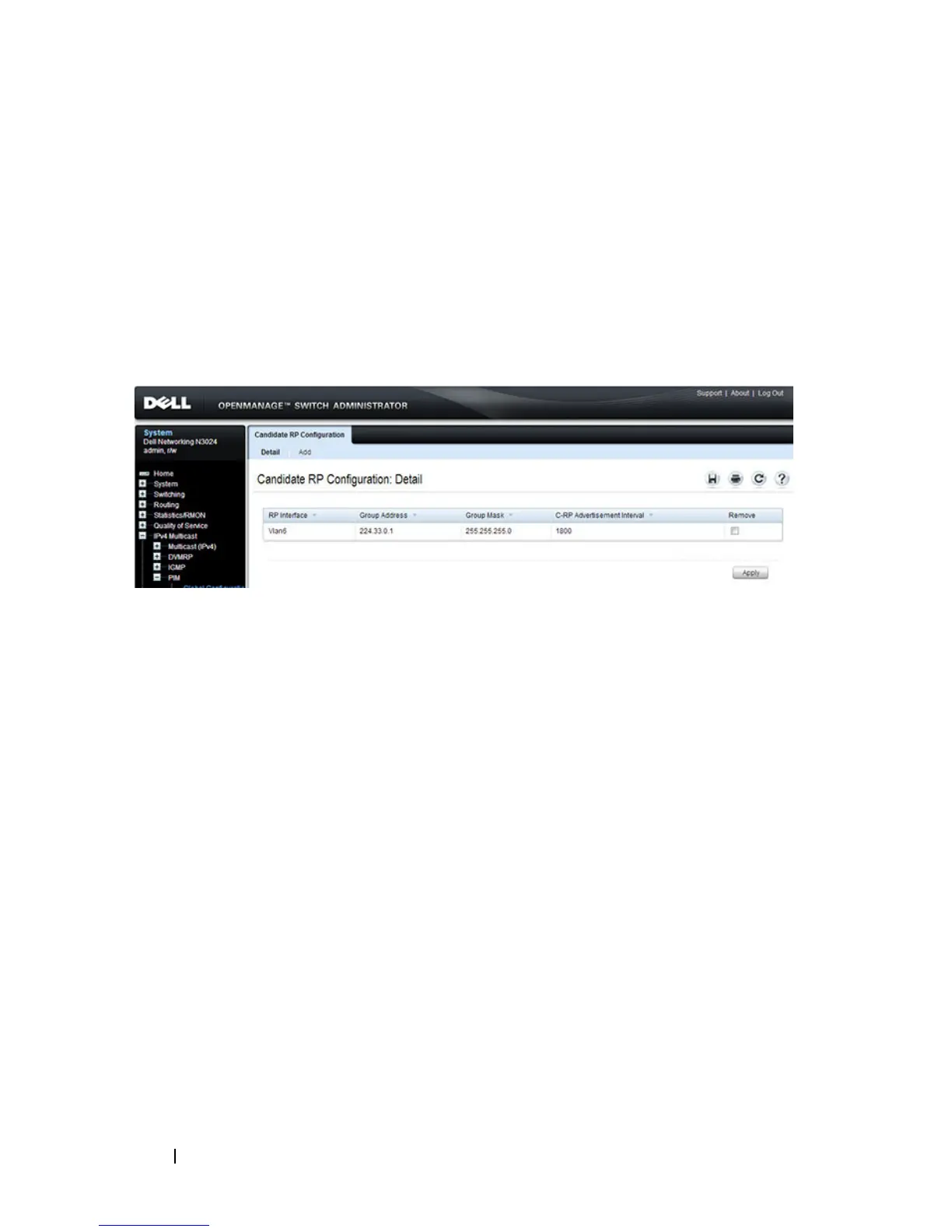

Figure 43-40. Candidate RP Configuration
Adding a Candidate RP
To add PIM Candidate rendezvous points (RPs) for each IP multicast group:
1
Open the Candidate RP Configuration page.
2 Click Add .
The
Add Candidate RP page displays.

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
