Dell Networking N4000 Series User Manual

Managing IPv4 and IPv6 Multicast 1387

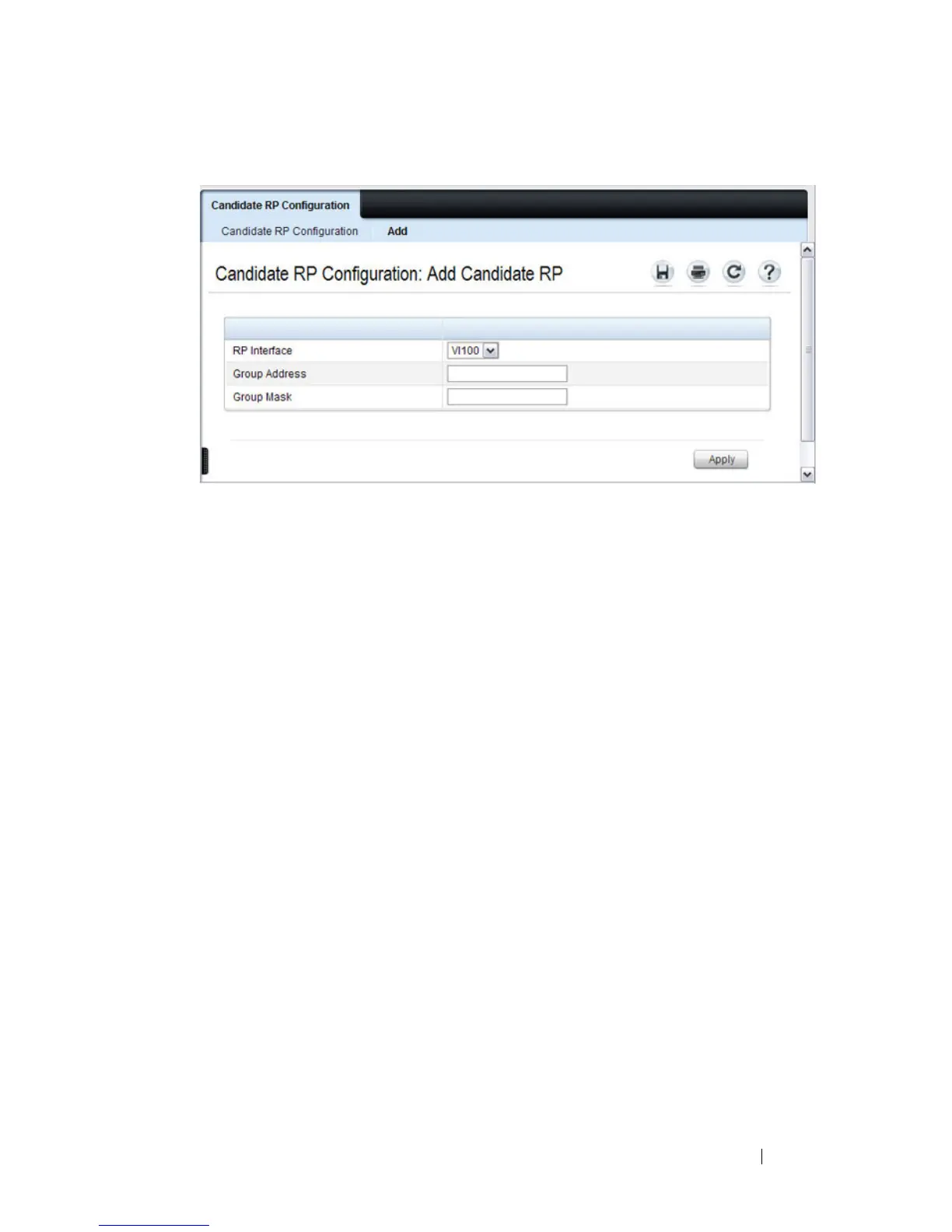

Figure 43-41. Add Candidate RP
3 Select the VLAN interface for which the Candidate RP is to be configured.
4 Enter the group address transmitted in Candidate-RP-Advertisements.
5 Enter the prefix length transmitted in Candidate-RP-Advertisements to
fully identify the scope of the group which the router supports if elected as
a Rendezvous Point.
6 Click Apply Changes .
The new Candidate RP is added, and the device is updated.

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
