Dell Networking N4000 Series User Manual

Managing IPv4 and IPv6 Multicast 1389

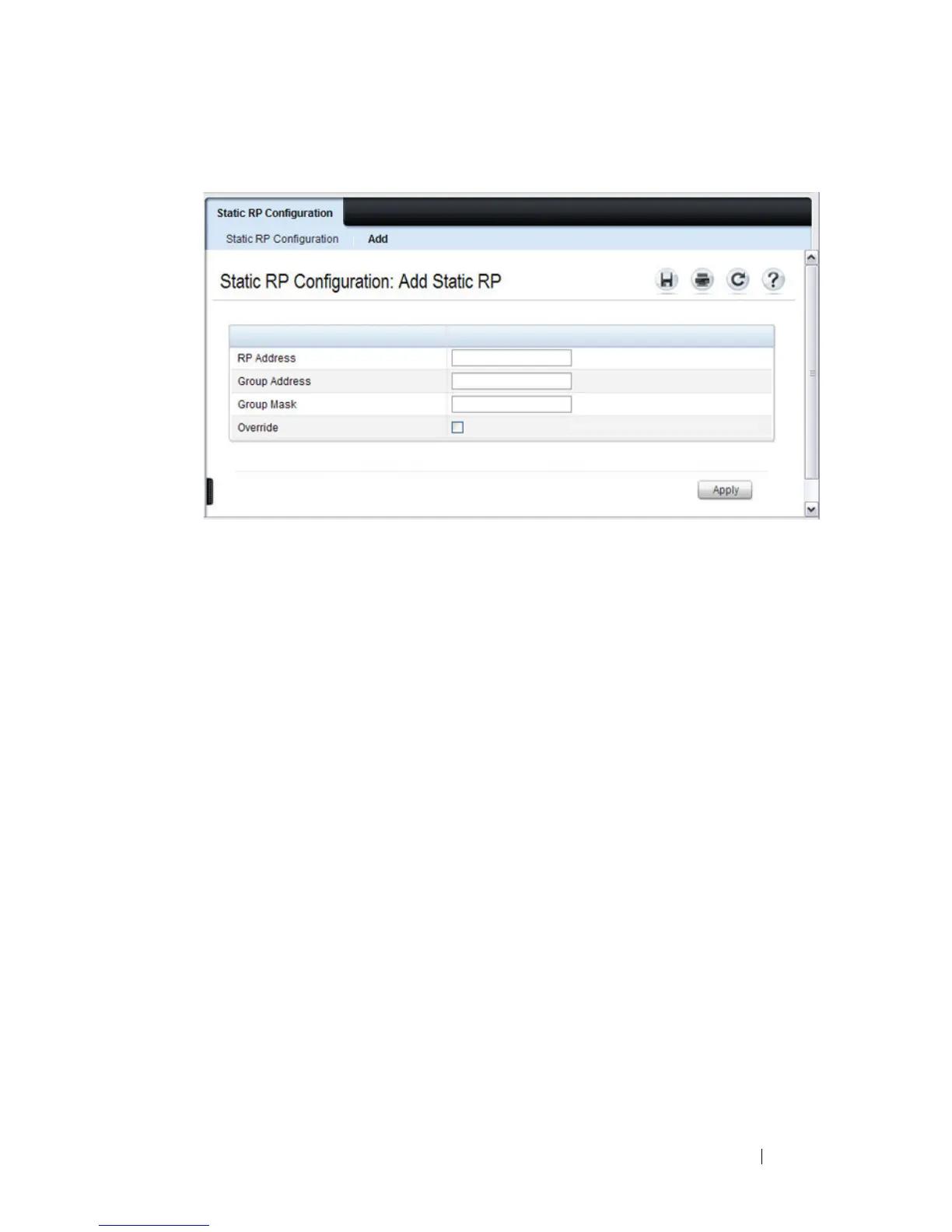

Figure 43-43. Add Static RP
3 Enter the IP address of the RP for the group range.
4 Enter the group address of the RP.
5 Enter the group mask of the RP.
6 Check the Override option to configure the static RP to override the
dynamic (candidate) RPs learned for same group ranges.
7 Click Apply .
The new Static RP is added, and the device is updated.

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
