Dell Networking N4000 Series User Manual

Managing IPv4 and IPv6 Multicast 1391

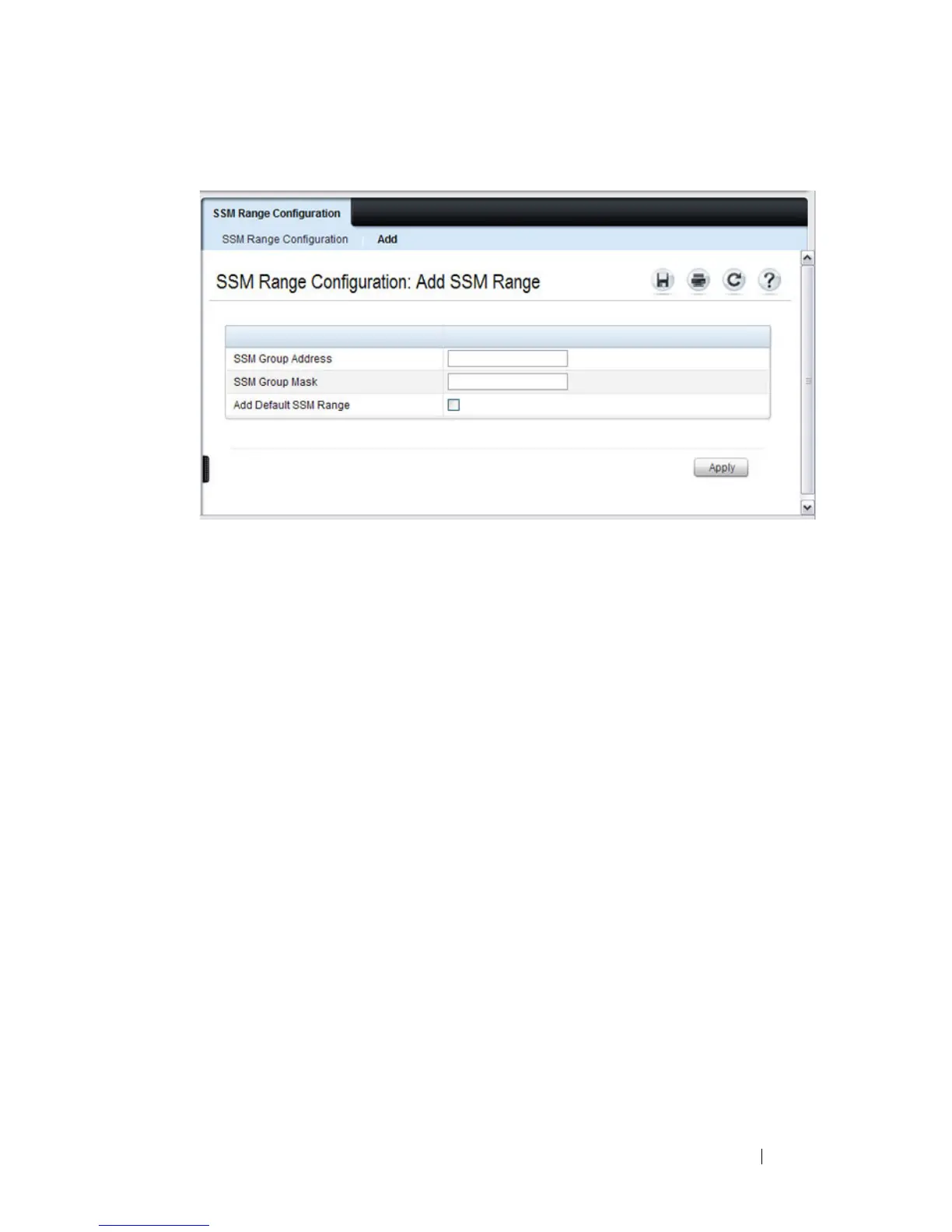

Figure 43-45. Add SSM Range
3 Click the Add Default SSM Range check box to add the default SSM
Range. The default SSM Range is 232.0.0.0/8 for IPv4 multicast and
ff3x::/32 for IPv6 multicast.
4 Enter the SSM Group IP Address.
5
Enter the SSM Group Mask (IPv4) or SSM Prefix Length (IPv6).
6 Click Apply .
The new SSM Range is added, and the device is updated.

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
