Dell Networking N4000 Series User Manual

154 Setting Basic Network Information

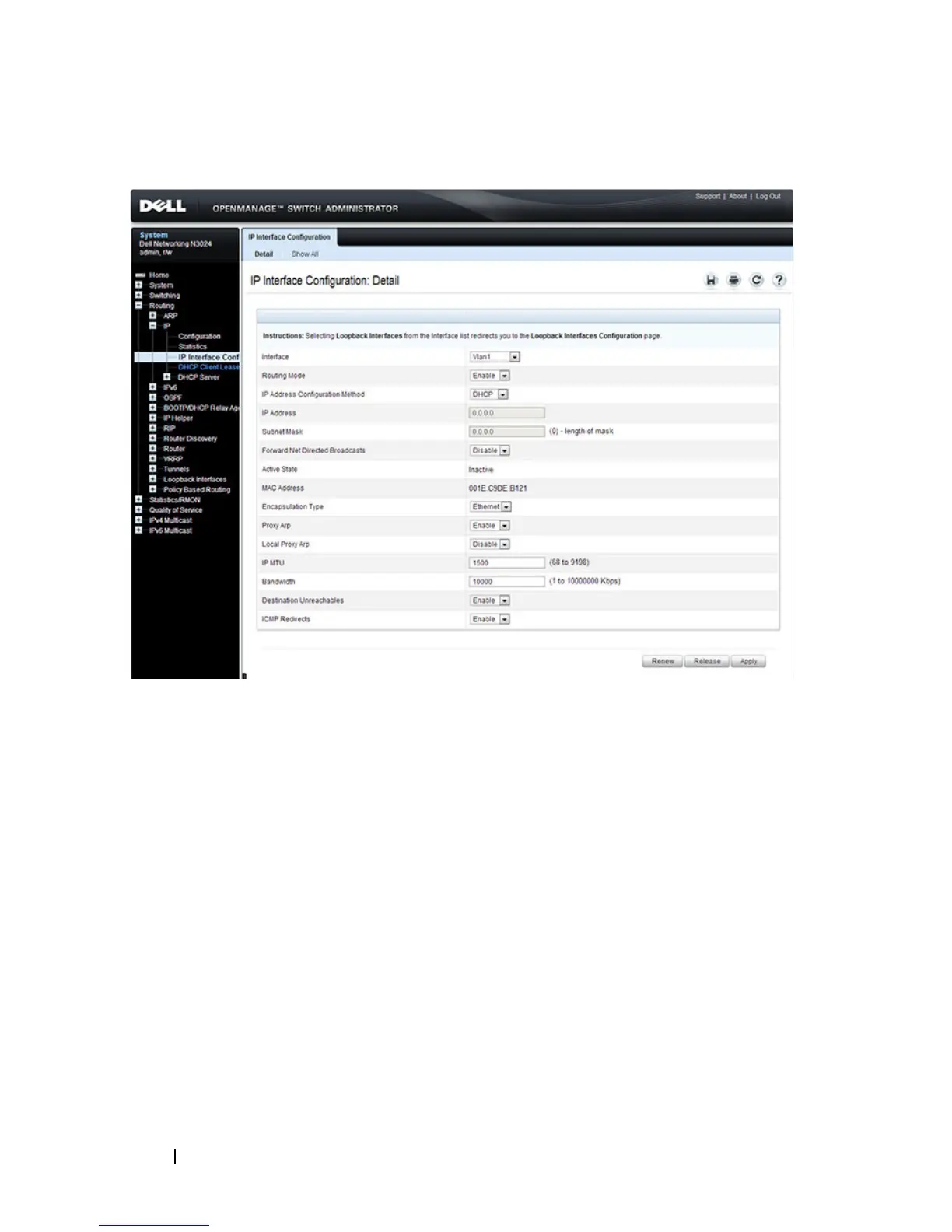

Figure 7-2. IP Interface Configuration (Default VLAN)
Assigning Network Information to the Default VLAN
To assign an IP Address and subnet mask to the default VLAN:
1
From the Interface menu, select VLAN 1.
2 From the Routing Mode field, select Enable .
3 From the IP Address Configuration Method field specify whether to
assign a static IP address (Manual) or use DHCP for automatic address
assignment.
4 If you select Manual for the configuration method, specify the I P Address
and
Subnet Mask in the appropriate fields.
5 Click Apply .

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
