Configuring Authentication, Authorization, and Accounting 223

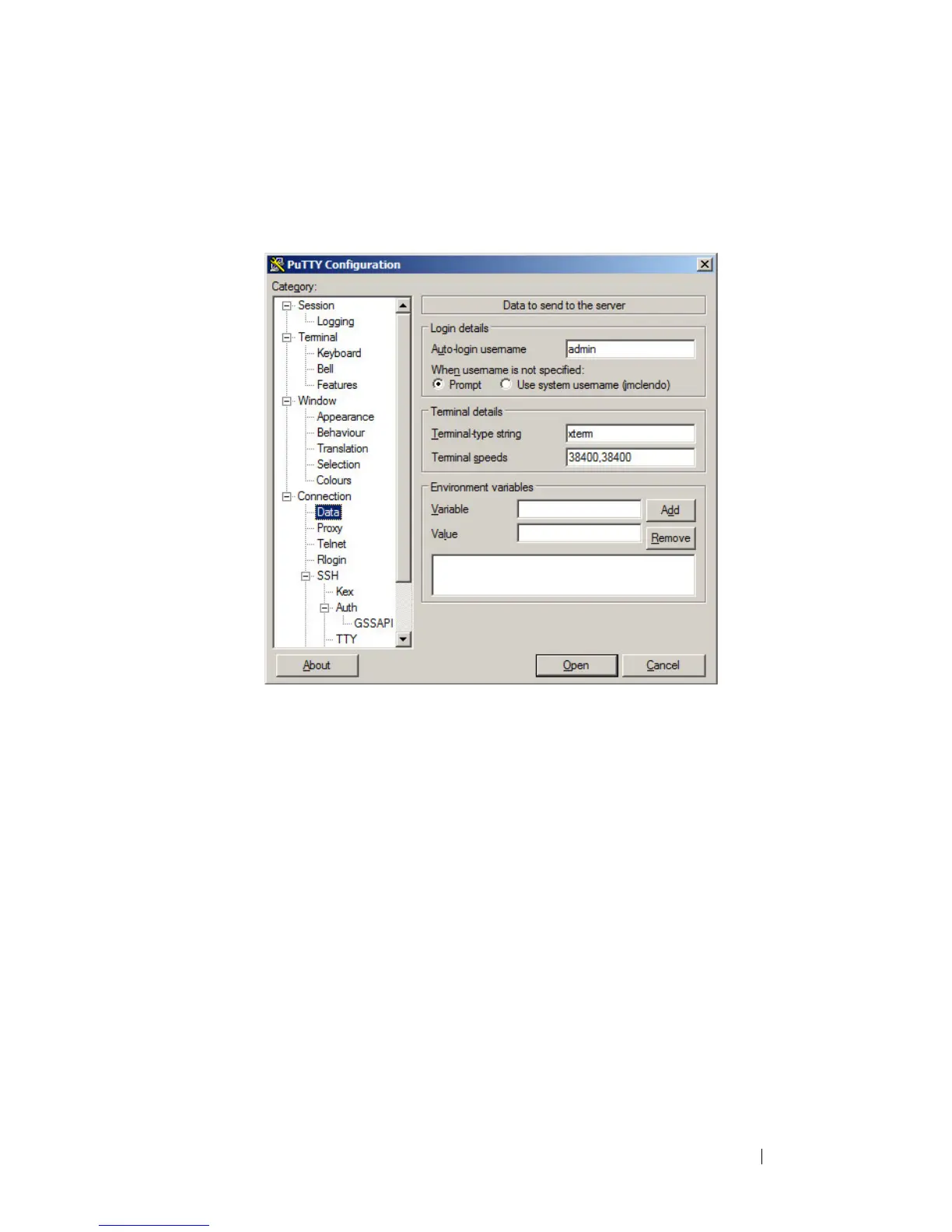

The following screen configures the user name to be sent to the switch. A user

name is always required. Alternatively, leave Auto-login name blank and the

system will prompt for a user name.
