438 Monitoring Switch Traffic

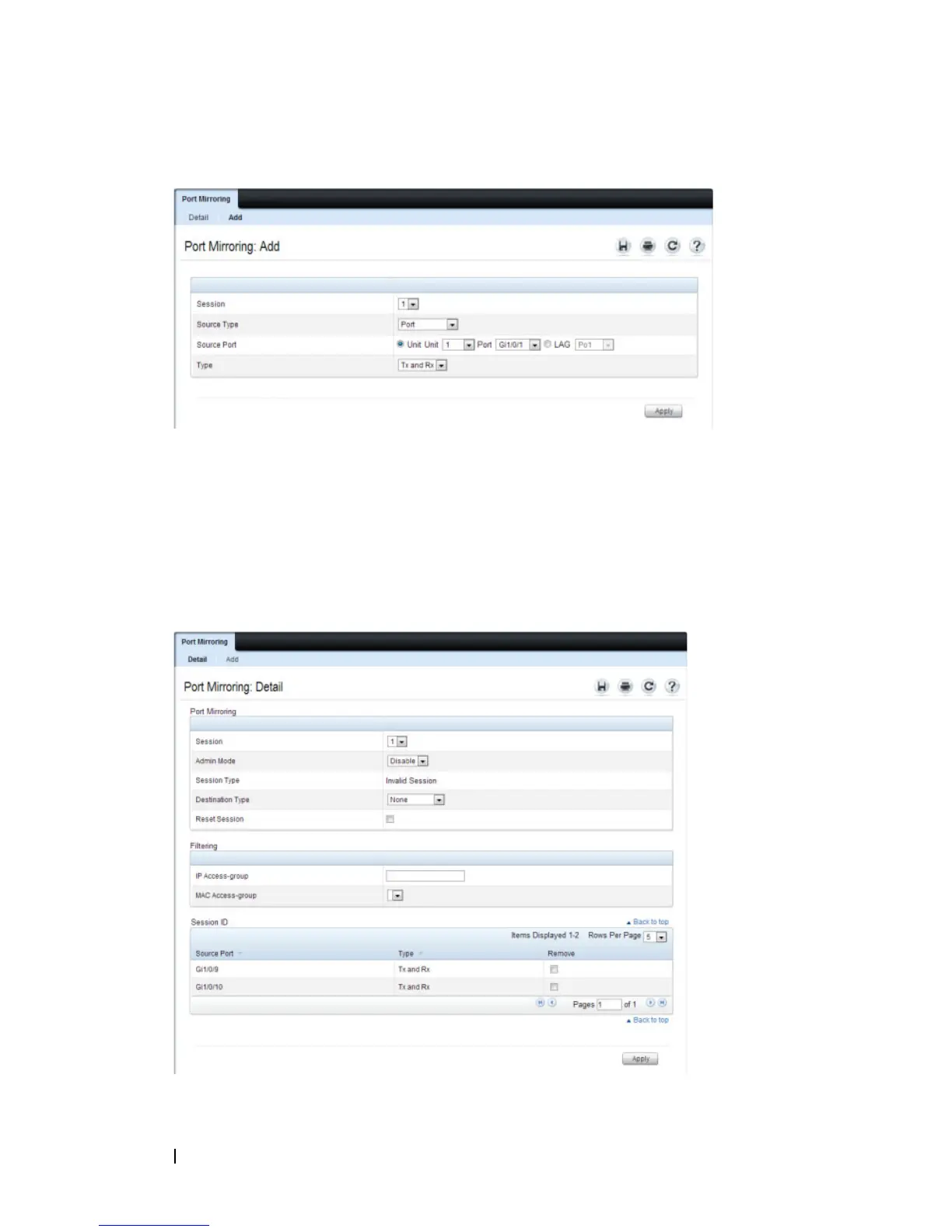

Figure 16-25. Add Source Port

5

Click

Apply

.

6

Repeat the previous steps to add additional source ports.

7

Click

Port Mirroring

to return to the

Port Mirroring

page.

8

Enable the administrative mode and specify the destination port.

Figure 16-26. Configure Additional Port Mirroring Settings

9

Click

Apply

.
