Dell Networking N4000 Series User Manual

600 Configuring Access Control Lists

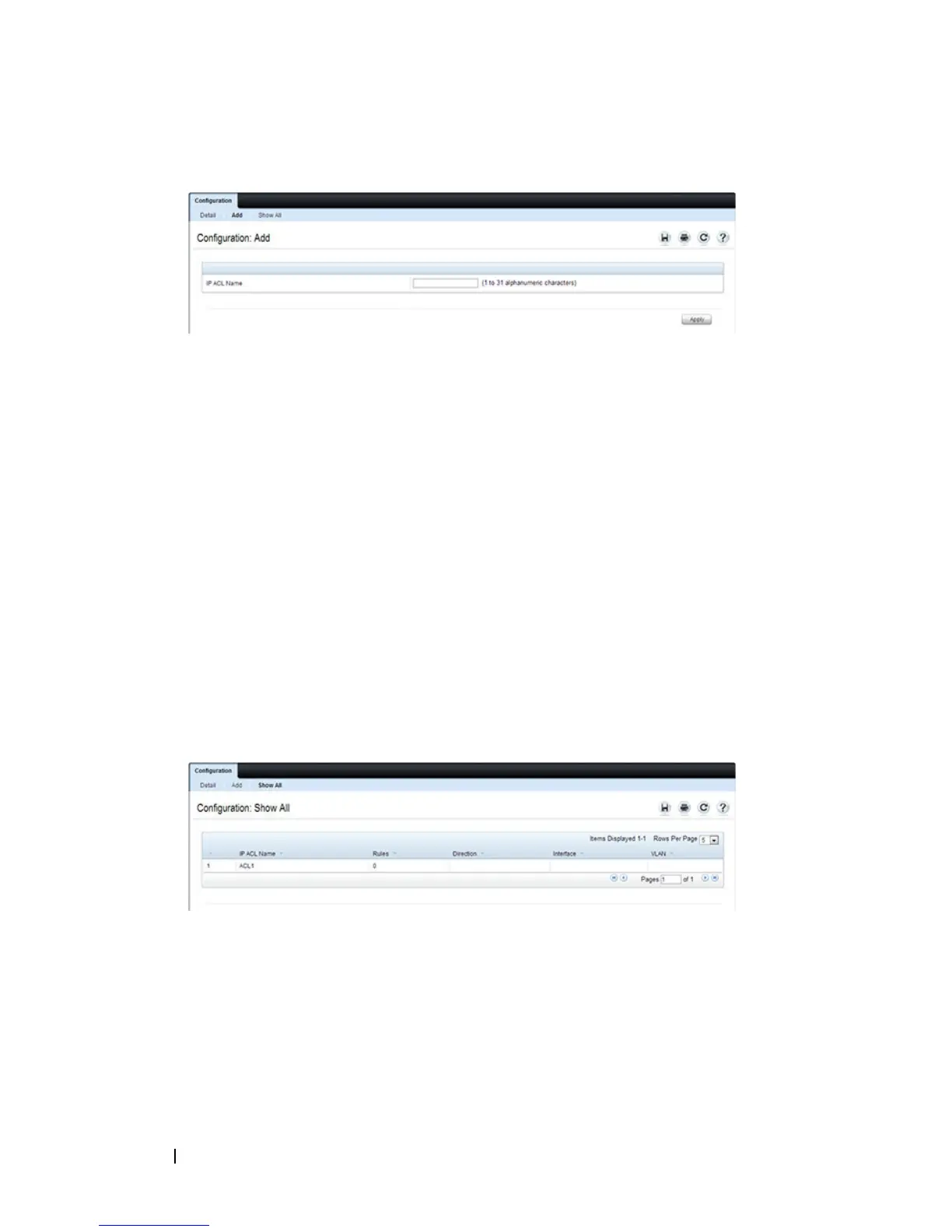

Figure 20-2. Add IP ACL
4 Click Apply .
Removing IPv4 ACLs
To delete an IPv4 ACL:
1
From the IP ACL Name menu on the IP ACL Configuration page, select
the ACL to remove.
2 Select the Remove checkbox.
3 Click Apply .
Viewing IPv4 ACLs
To view configured ACLs, click Show All from the IP ACL Configuration
page.
Figure 20-3. View IPv4 ACLs

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
