Dell Networking N4000 Series User Manual

Configuring Access Control Lists 611

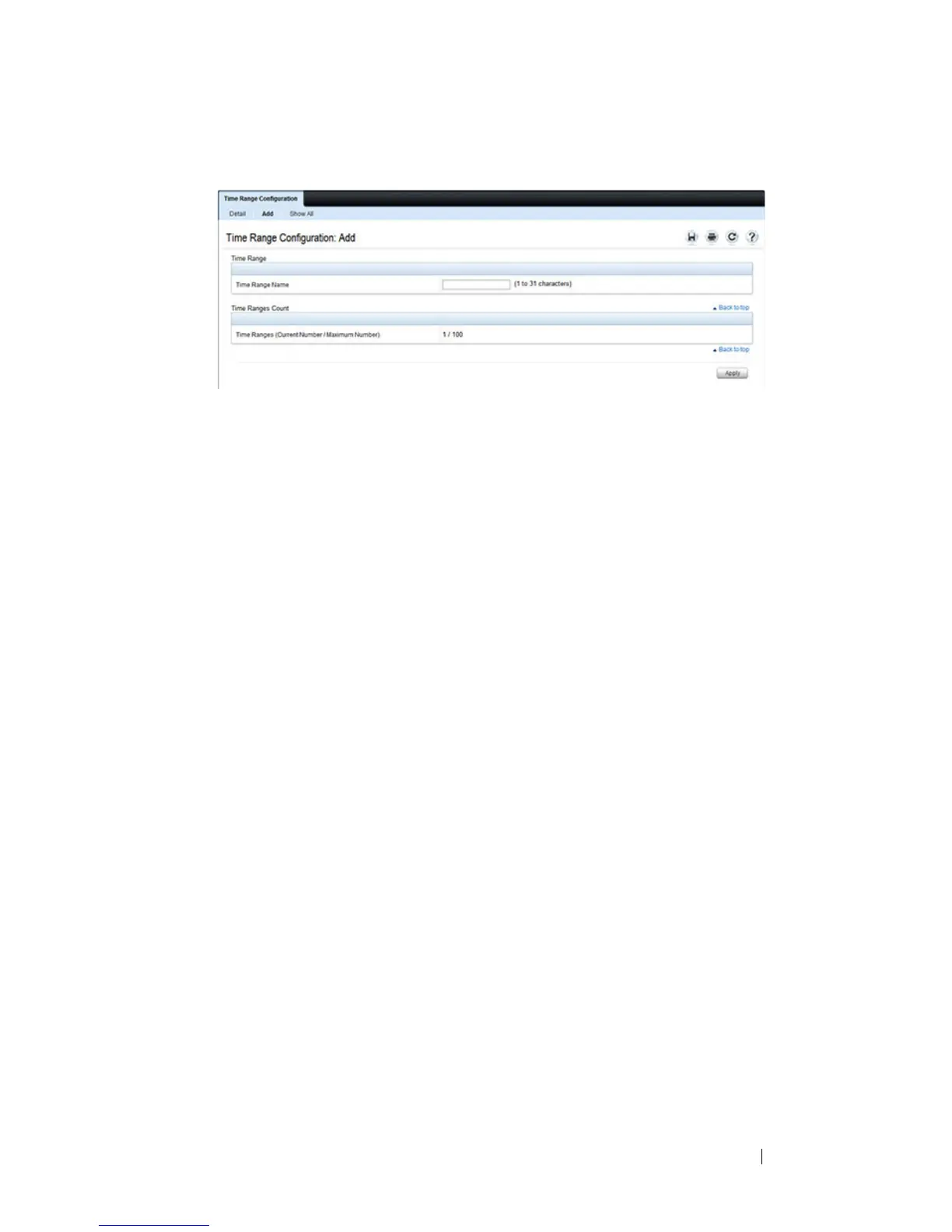

Figure 20-13. Add a Time Range
3 Click Apply .
4 Click Configuration to return to the Time Range Entry Configuration
page.
5
In the Time Range Name field, select the name of the time range to
configure.
6 Specify an ID for the time range. You can configure up to 10 different time
range entries to include in the named range. However, only one absolute
time entry is allowed per time range.
7 Configure the values for the time range entry.
8 Click Apply .
9 To add additional entries to the named time range, repeat step 5 through
step 8.

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
