Configuring VLANs 647

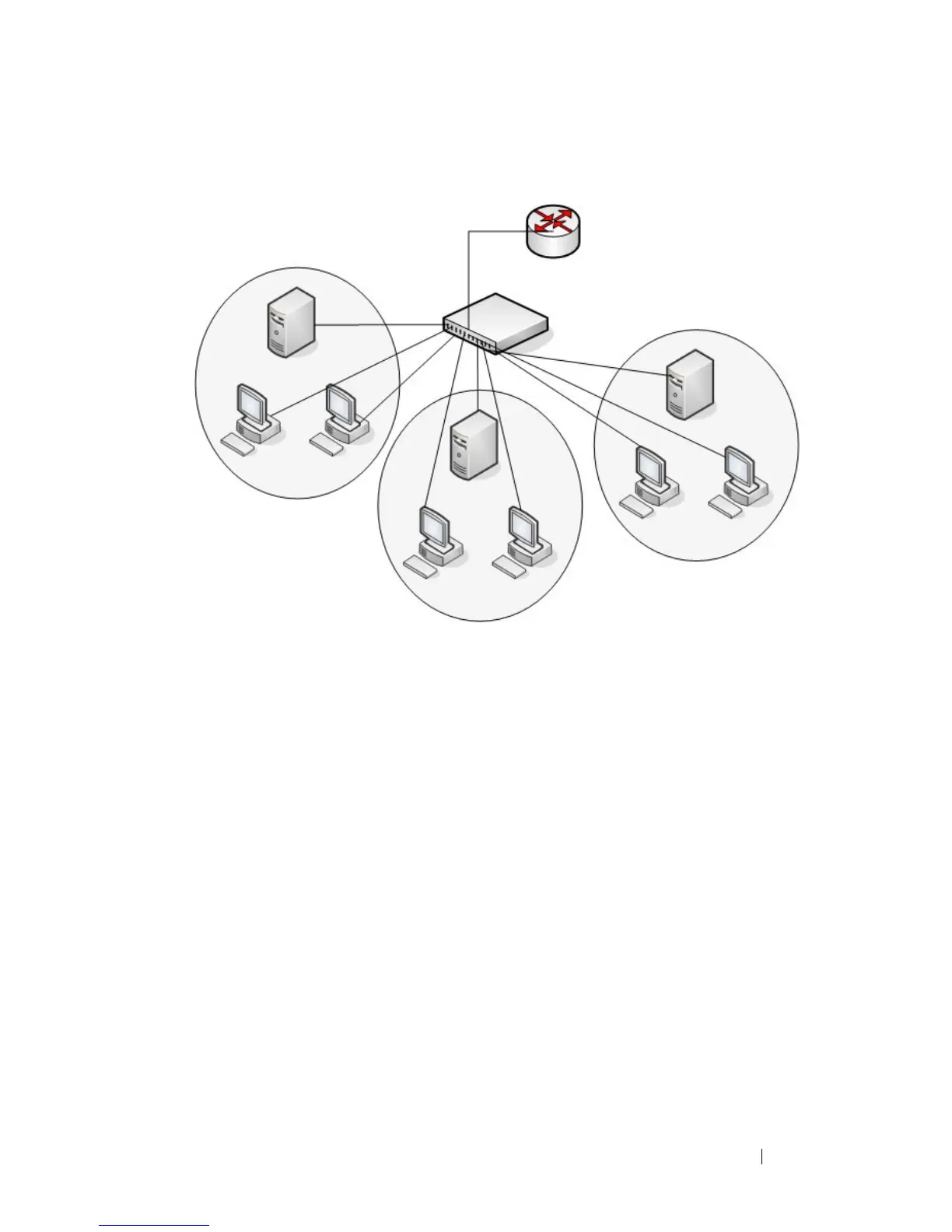

Figure 21-1. Simple VLAN Topology
In this example, each port is manually configured so that the end station
attached to the port is a member of the VLAN configured for the port. The
VLAN membership for this network is port-based or static.
Dell Networking series switches also support VLAN assignment based on any
of the following criteria:
MAC address of the end station
IP subnet of the end station
Protocol of the packet transmitted by the end station
Payroll
VLAN 300
Engineering
VLAN 100
Tech Pubs
VLAN 200
Router
Switch
