Dell Networking N4000 Series User Manual

Configuring VLANs 665

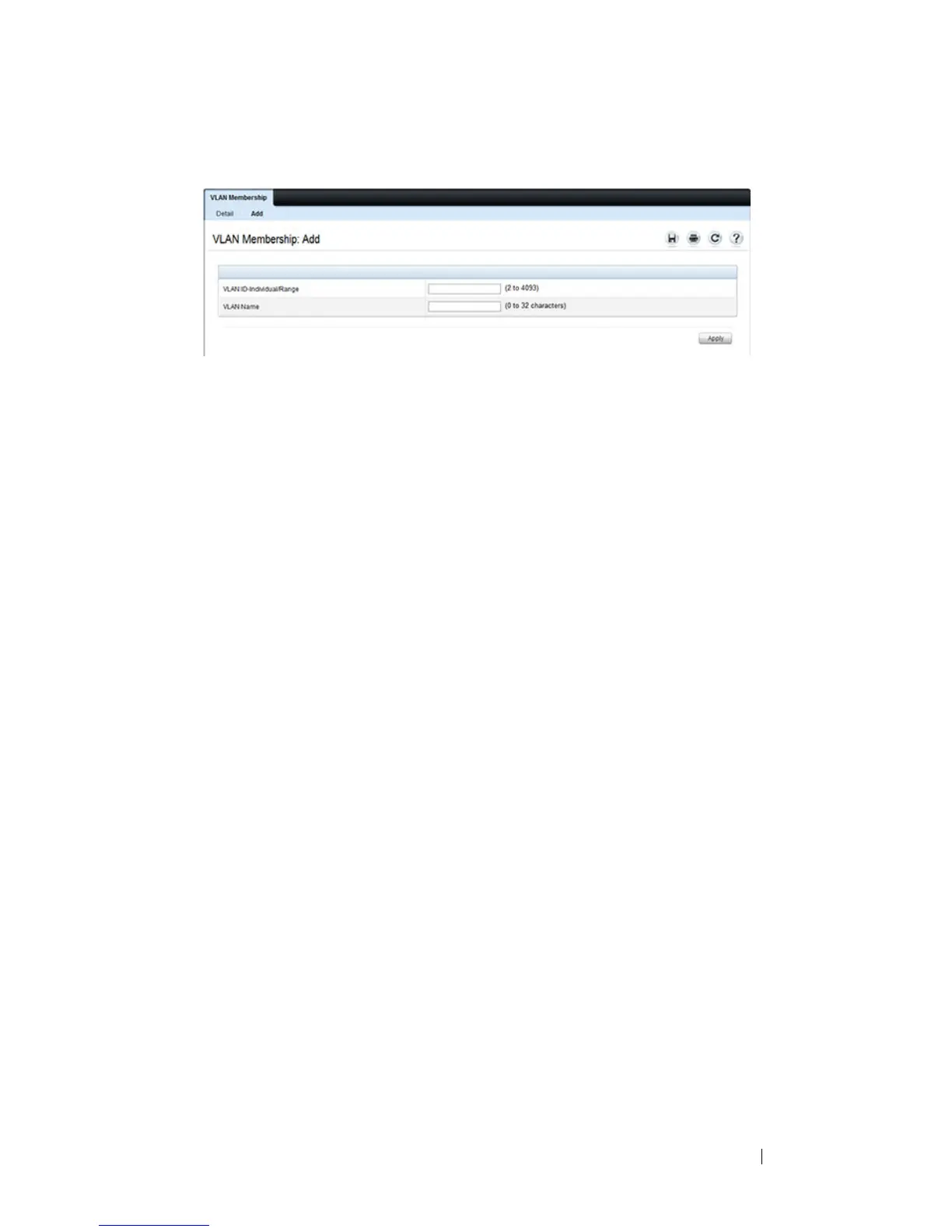

Figure 21-5. Add VLAN
4 Click Apply .
Configuring Ports as VLAN Members
To add member ports to a VLAN:
1
Open the VLAN Membership page.
2 From the Show VLAN menu, select the VLAN to which you want to assign
ports.
3 In the Static row of the VLAN Membership table, click the blank field to
assign the port as an untagged member.
Figure 21-6 shows 10-Gigabit Ethernet ports 8–10 being added to VLAN
300.

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
