Dell Networking N4000 Series User Manual

Configuring the Spanning Tree Protocol 739
Configuring STP Settings for Multiple Ports
To configure STP settings for multiple ports:
1
Open the STP Port Settings page.
2 Click Show All to display the STP Port Table .

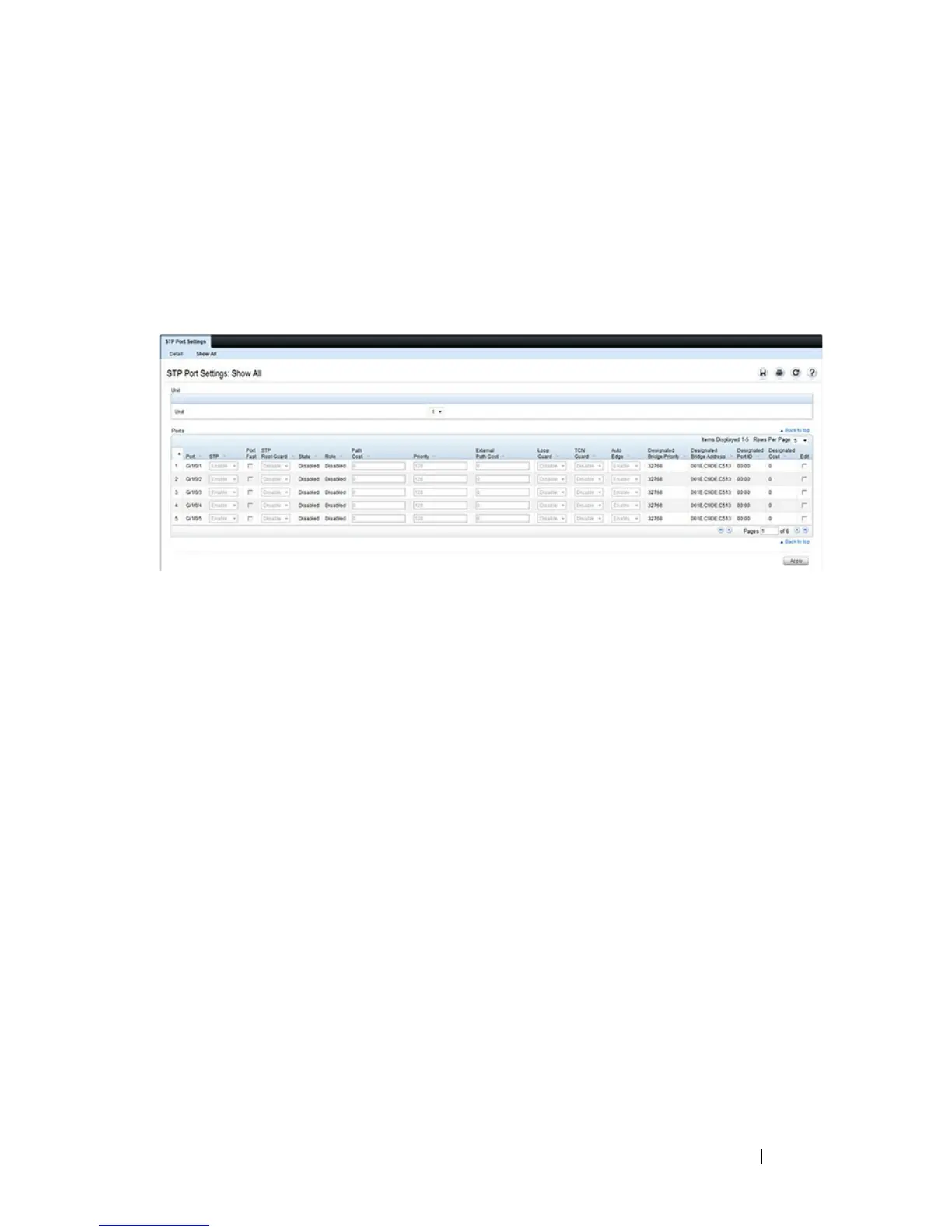

Figure 22-11. Configure STP Port Settings
3 For each port to configure, select the check box in the Edit column in the
row associated with the port.
4 Select the desired settings.
5 Click Apply .

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
