Dell Networking N4000 Series User Manual

744 Configuring the Spanning Tree Protocol
Viewing and Modifying the Instance ID for Multiple VLANs
To configure MSTP settings for multiple VLANS:
1
Open the MSTP Settings page.
2 Click Show All to display the MSTP Settings Table .

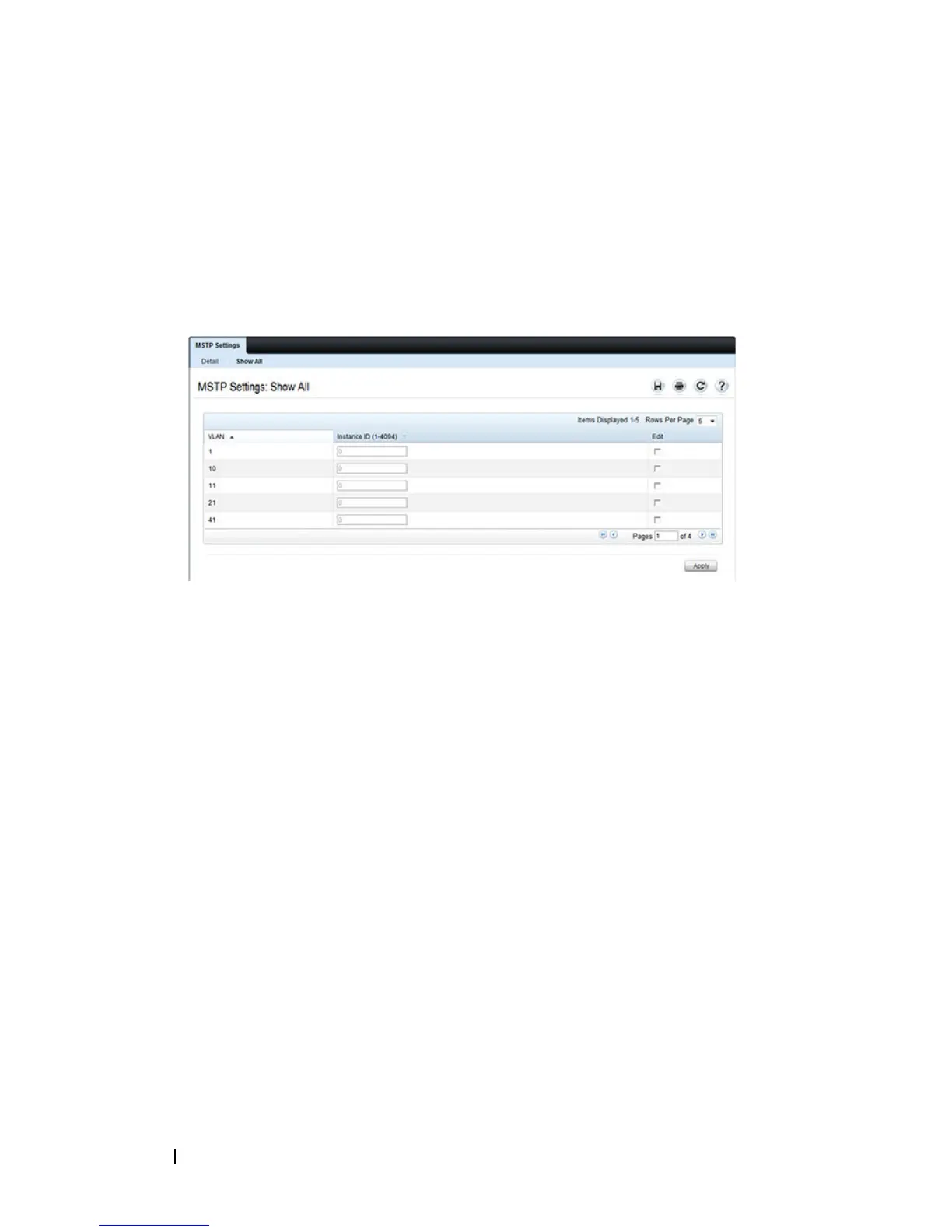

Figure 22-17. Configure MSTP Settings
3 For each Instance ID to modify, select the check box in the Edit column in
the row associated with the VLAN.
4 Update the Instance ID settings for the selected VLANs.
5 Click Apply .

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
