844 Configuring L2 Multicast Features

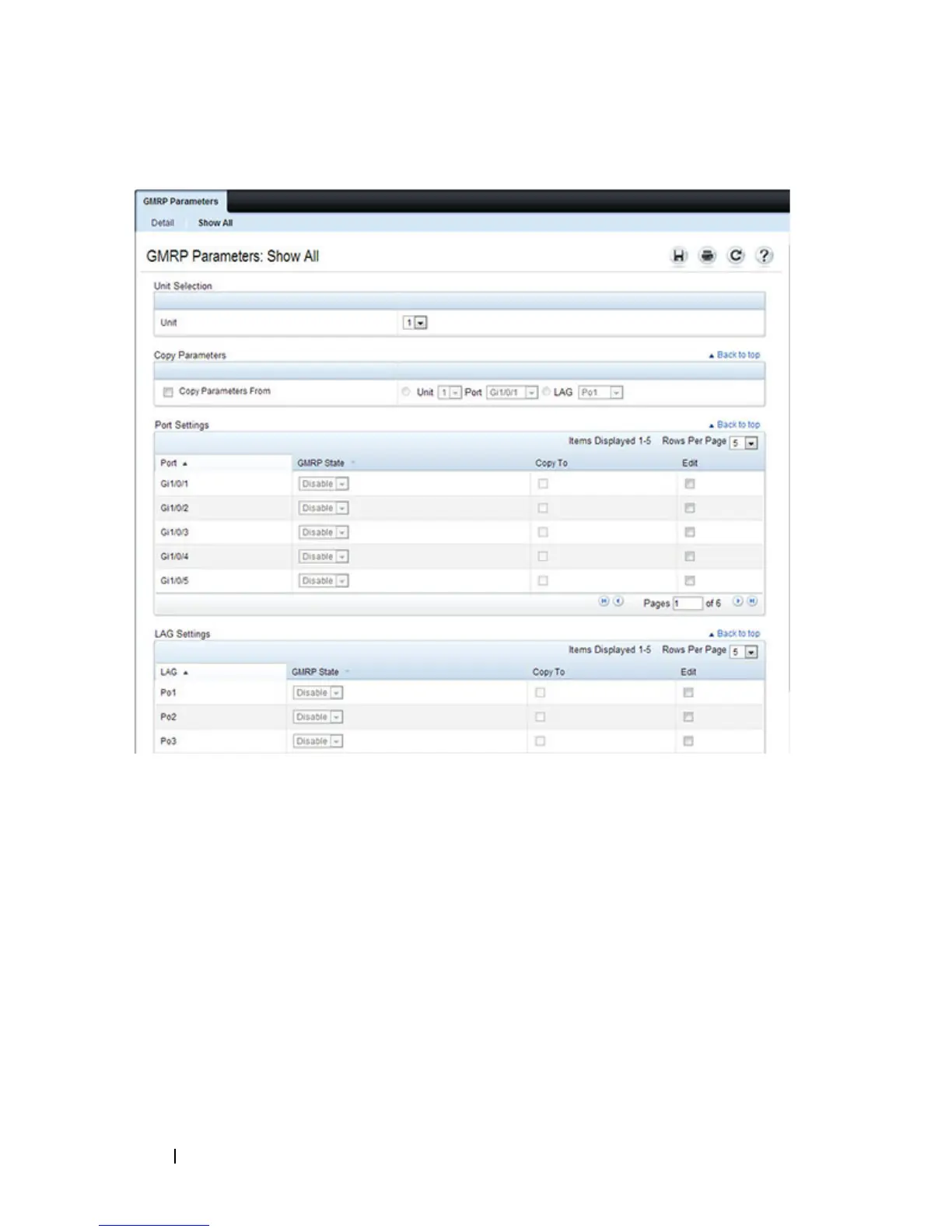

Figure 25-33. GMRP Port Configuration Table

3

For each port or LAG to configure, select the check box in the

Edit

column in the row associated with the port.

4

Specify the desired timer values.

5

Click

Apply

.
