Configuring Link Aggregation 921

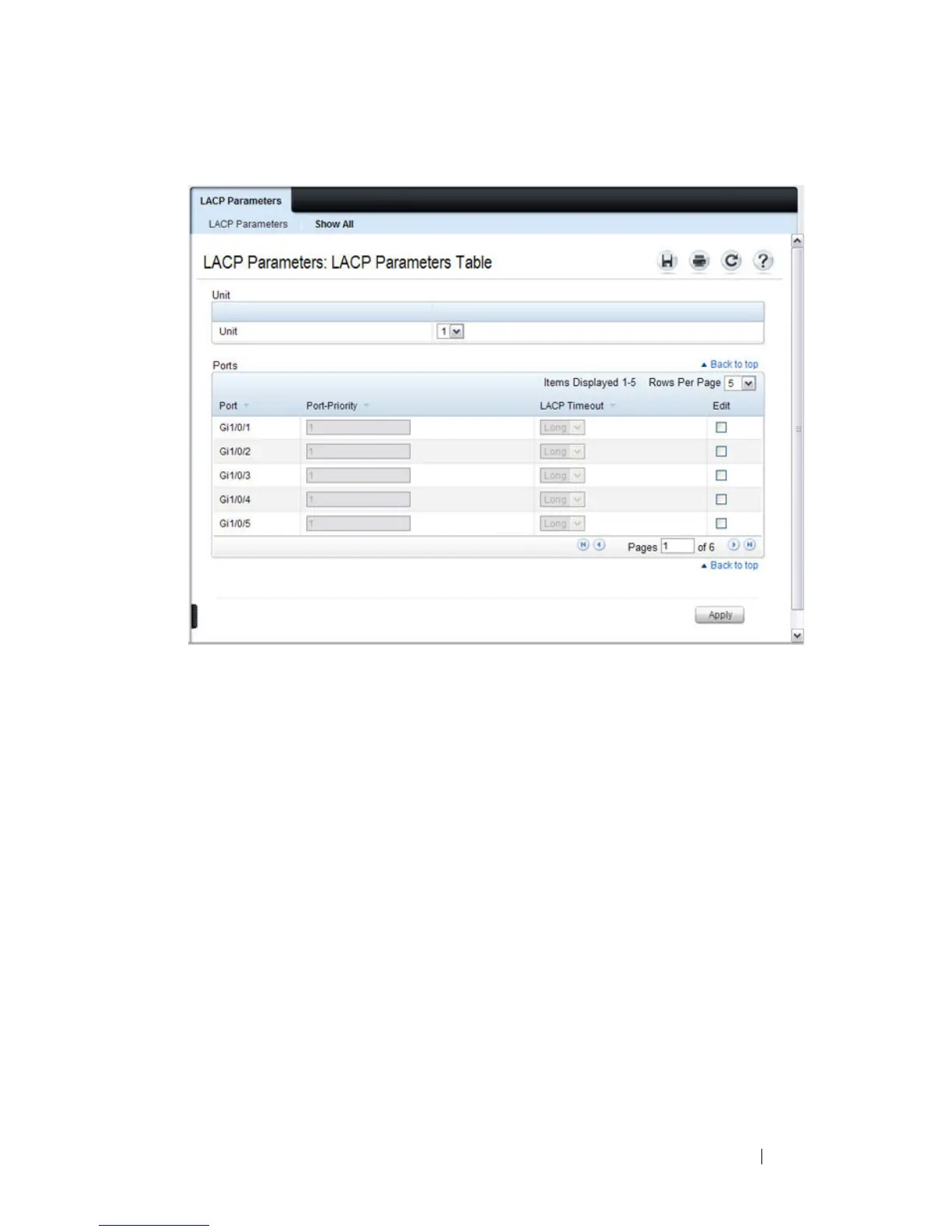

Figure 28-4. LACP Parameters Table
3 Select the Edit check box associated with each port to configure.
4 Specify the LACP port priority and LACP timeout for each port.
5 Click Apply .
LAG Membership
Your switch supports 48 LAGs per system, and eight ports per LAG. Use the
LAG Membership page to assign ports to static and dynamic LAGs.
To display the LAG Membership page, click Switching
→ Link Aggregation
→ LAG Membership in the navigation panel.

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
