receives a Down status notification from the remote system, the session state on the local system

changes to Init.

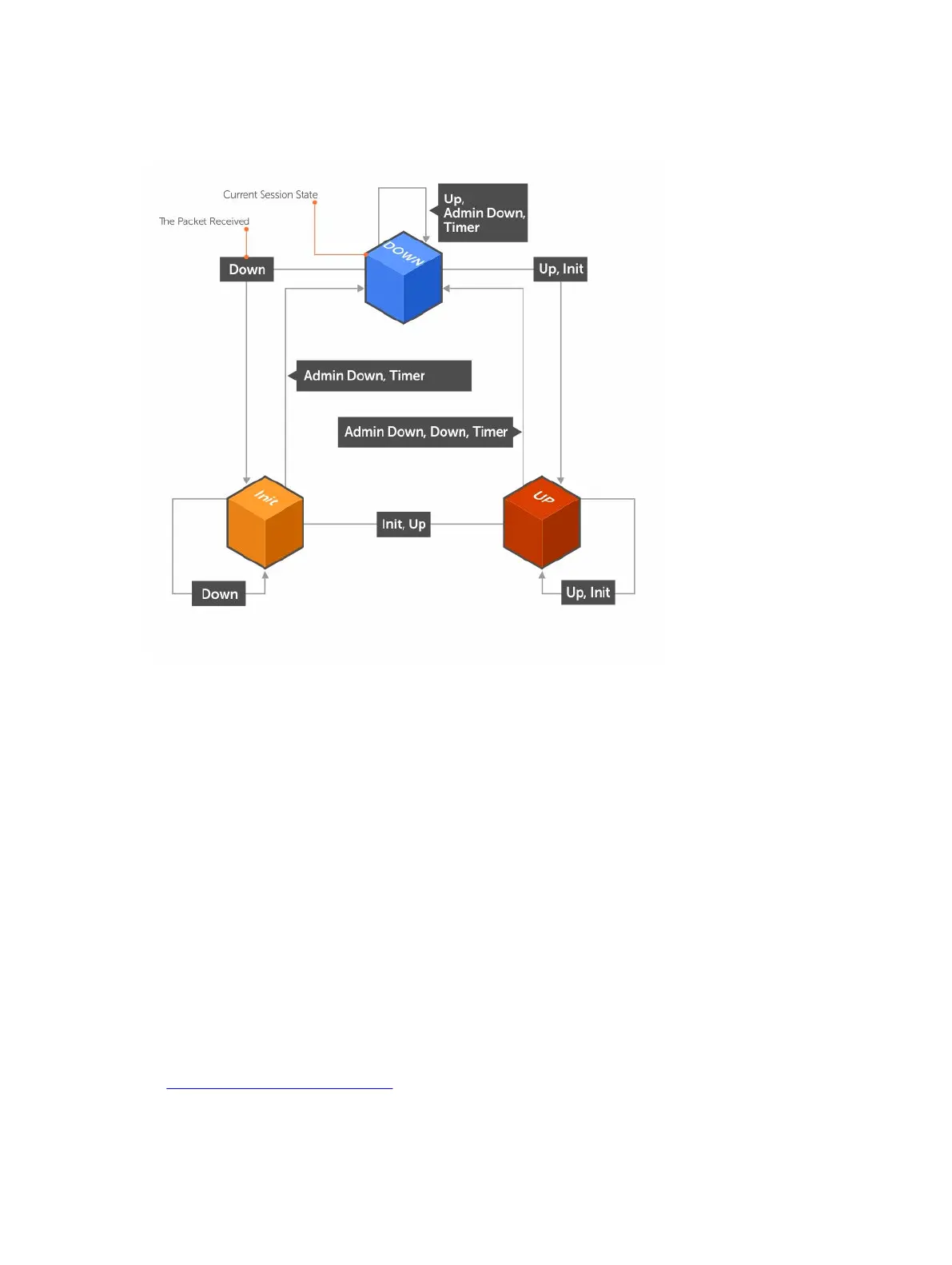

Figure 14. Session State Changes

Important Points to Remember

• On the S4820T platform, Dell Networking OS supports 128 sessions per stack unit at 200 minimum

transmit and receive intervals with a multiplier of 3, and 64 sessions at 100 minimum transmit and

receive intervals with a multiplier of 4.

• Enable BFD on both ends of a link.

• Demand mode, authentication, and the Echo function are not supported.

• BFD is not supported on multi-hop and virtual links.

• Protocol Liveness is supported for routing protocols only.

• Dell Networking OS supports only OSPF, OSPFv3, IS-IS, and BGP protocols as BFD clients.

Configure BFD

This section contains the following procedures.

• Configuring BFD for Physical Ports

Bidirectional Forwarding Detection (BFD)

171
