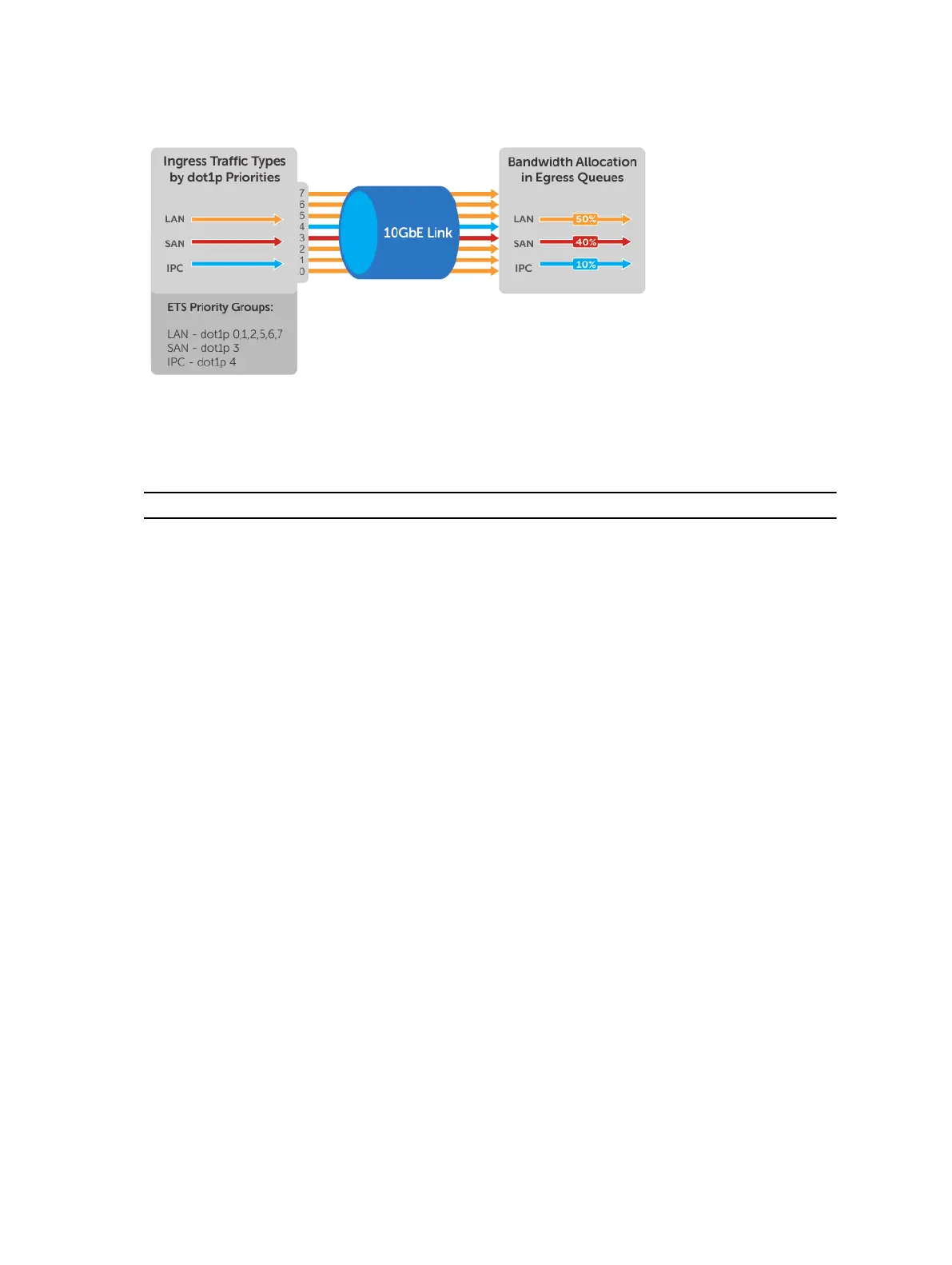

Figure 31. Enhanced Transmission Selection
The following table lists the traffic groupings ETS uses to select multiprotocol traffic for transmission.
Table 14. ETS Traffic Groupings
Traffic Groupings Description
Group ID A 4-bit identifier assigned to each priority group.
The range is from 0 to 7 configurable; 8 - 14
reservation and 15.0 - 15.7 is strict priority group..
Group bandwidth Percentage of available bandwidth allocated to a
priority group.
Group transmission selection algorithm (TSA) Type of queue scheduling a priority group uses.
In Dell Networking OS, ETS is implemented as follows:
• ETS supports groups of 802.1p priorities that have:
– PFC enabled or disabled
– No bandwidth limit or no ETS processing
• ETS uses the DCB MIB IEEE 802.1azd2.5.
Data Center Bridging Exchange Protocol (DCBx)
The data center bridging exchange (DCBx) protocol is disabled by default on the S4810; ETS is also
disabled.
DCBx allows a switch to automatically discover DCB-enabled peers and exchange configuration
information. PFC and ETS use DCBx to exchange and negotiate parameters with peer devices. DCBx
capabilities include:
• Discovery of DCB capabilities on peer-device connections.
• Determination of possible mismatch in DCB configuration on a peer link.
• Configuration of a peer device over a DCB link.
