Policy-Based QoS Configurations

Policy-based QoS configurations consist of the components shown in the following example.

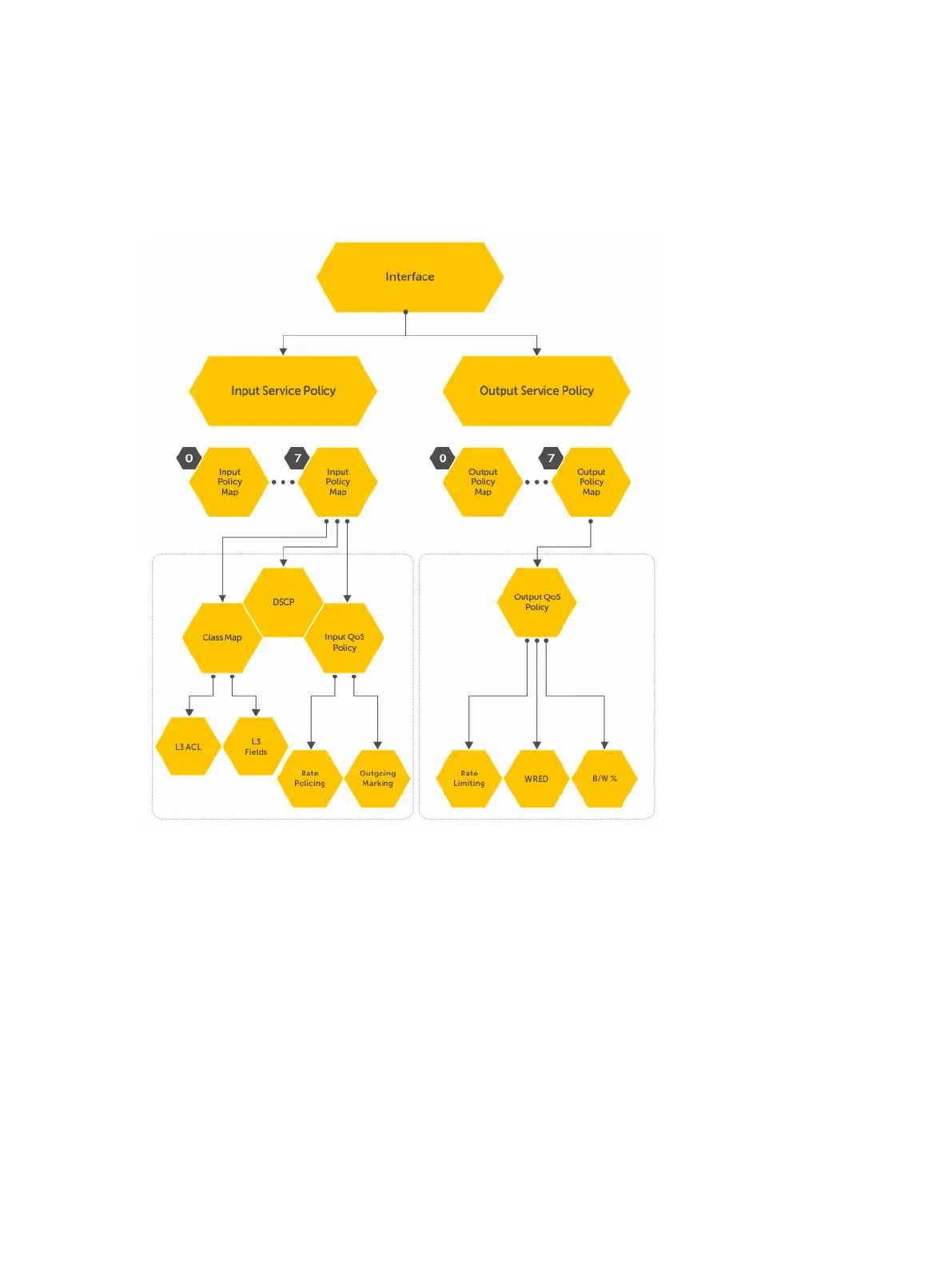

Figure 106. Constructing Policy-Based QoS Configurations

Classify Traffic

Class maps differentiate traffic so that you can apply separate quality of service policies to different types

of traffic.

For both class maps, Layer 2 and Layer 3, Dell Networking OS matches packets against match criteria in

the order that you configure them.

794

Quality of Service (QoS)
