BAT STRINGS
Set up how many battery strings are used.
y
BAT CUT OFF VOLT (V)
Set up battery low voltage. In battery mode, when the battery low voltage is reached,
the battery power will cut off, the UPS will shut down, and the connected loads won’t be
protected.
y
COMMON BAT
Set up whether batteries need to be shared in parallel mode.
y
TEST DURATION (MIN)
Set up how long the battery test should last.
y
TEST FAIL VOLT (V)
Set up test fail voltage. When the battery voltage is under the test fail voltage, it means
battery fail.
y
INSTALL DATE (Y-M-D)
Set up battery installation date.
y
NEXT REPLACE DATE (Y-M-D)
Set up battery replacement date.
8.7.4 Charger Setup
5RXWH0DLQ6FUHHQĺ0DLQ0HQXĺ8366HWXS&RQWUROĺ&KDUJHU6HWXS

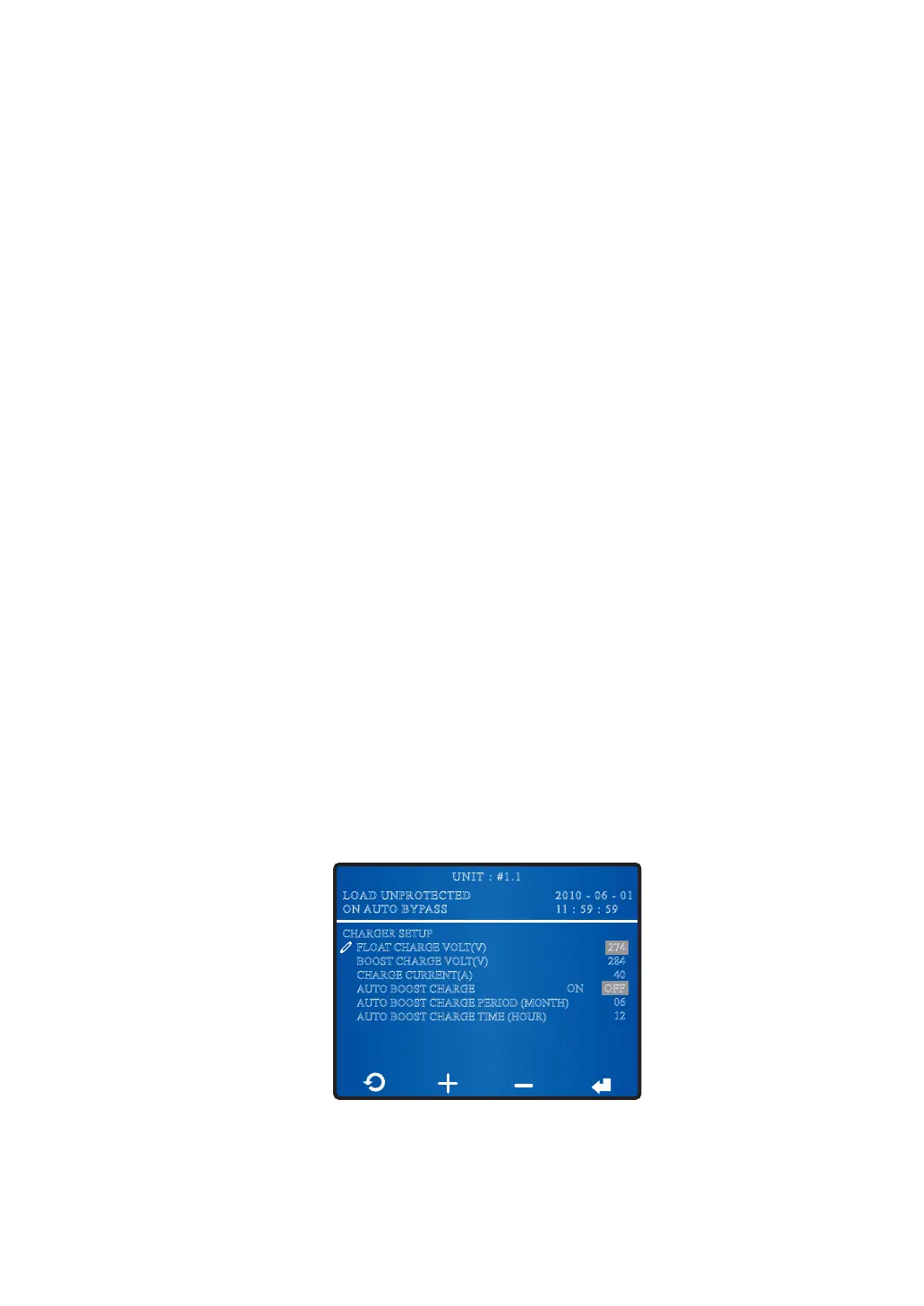

In the CHARGER SETUPVFUHHQVKRZQEHORZ\RXFDQVHWXSÀRDWFKDUJHYROWDJHERRVW
charge voltage, and charge current.
2010 - 06 - 01
11 : 59 : 59
UNIT : #1.1
LOAD UNPROTECTED
ON AUTO BYPASS
CHARGER SETUP
FLOAT CHARGE VOLT(V)
BOOST CHARGE VOLT(V)
CHARGE CURRENT(A)
AUTO BOOST CHARGE
AUTO BOOST CHARGE PERIOD (MONTH)
AUTO BOOST CHARGE TIME (HOUR)
274
284
40
ON OFF
06
12
