LCD Display & Settings
y
FLOAT CHARGE VOLT (V)
6HWXSÀRDWFKDUJHYROWDJH
y
BOOST CHARGE VOLT (V)
Set up boost charge voltage.
y
CHARGE CURRENT (A)
Set up charge current.
y
AUTO BOOST CHARGE
Set up ‘AUTO BOOST CHARGE’ as ON or OFF.
y
AUTO BOOST CHARGE PERIOD (MONTH)
Set up auto boost charge period (month).
y
AUTO BOOST CHARGE TIME (HOUR)
Set up auto boost charge time (hour).
8.7.5 Parallel Setup
5RXWH0DLQ6FUHHQĺ0DLQ0HQXĺ8366HWXS&RQWUROĺ3DUDOOHO6HWXS

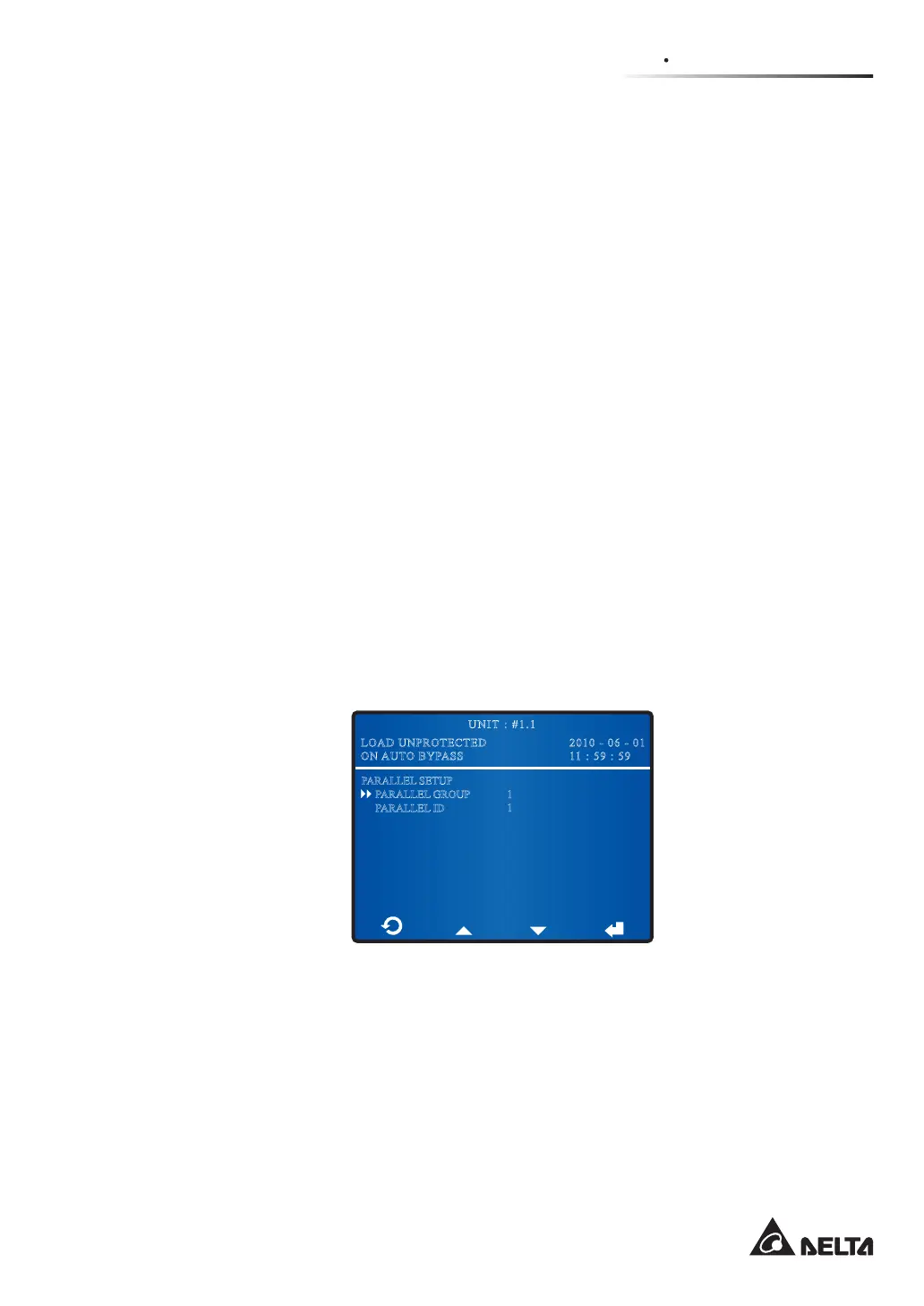

If you parallel UPSs, please go to PARALLEL SETUP screen shown below to set up a
parallel group ID No. and a parallel ID No. for each parallel UPS.
2010 - 06 - 01
11 : 59 : 59
UNIT : #1.1
LOAD UNPROTECTED
ON AUTO BYPASS
PARALLEL SETUP
PARALLEL GROUP
PARALLEL ID
1
1
y
PARALLEL GROUP
Set up a parallel group ID No. (1~2) for each parallel UPS.
If all parallel UPSs connect to the same group of critical loads, set each parallel UPS’s
parallel group ID No. as 1.
If parallel UPSs connect to different groups of critical loads (maximum group: two), set
each UPS’s parallel group ID No. as 1 or 2 accordingly.
