Replacing Consumables 8-27

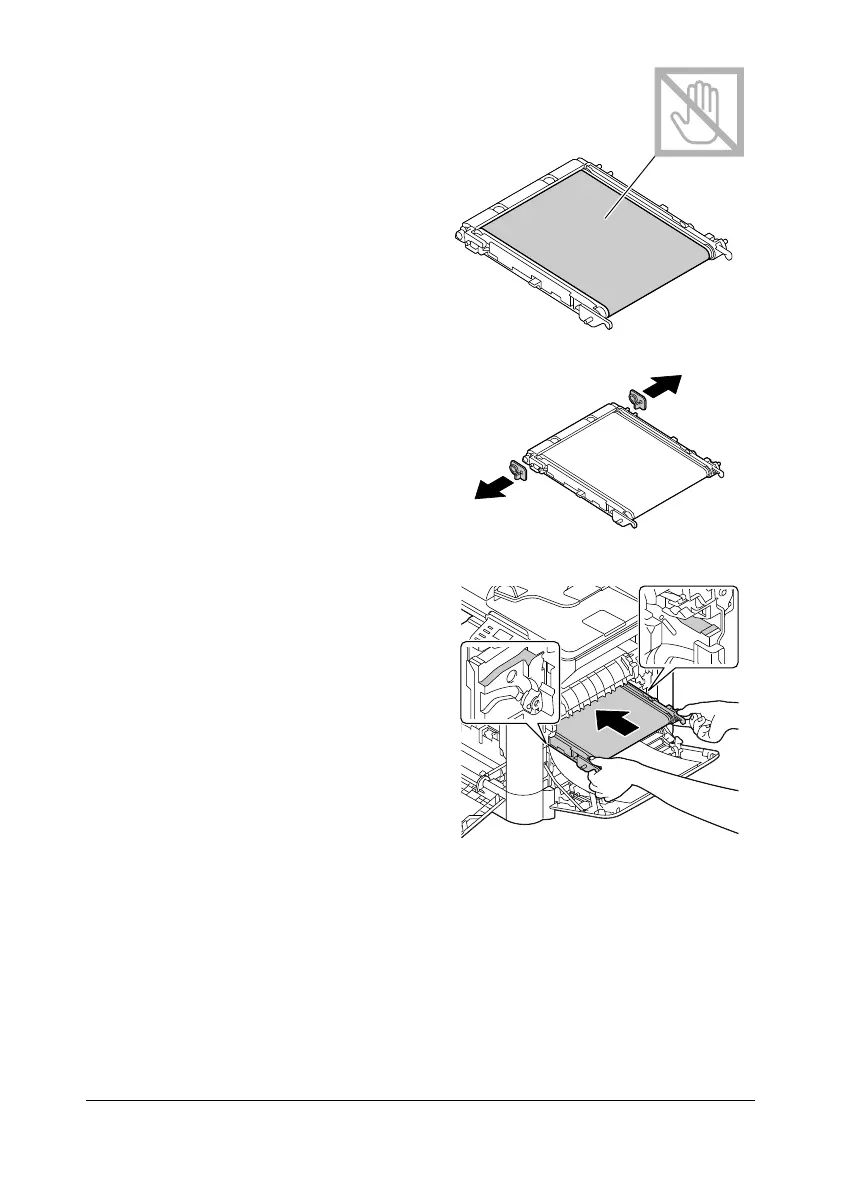

9 Prepare a new transfer belt unit.
d
Be careful not to touch
the surface of the belt.
d
Do not remove the blue
lever.
10 Remove the protective cover
from the new transfer belt unit.
11 Insert the new transfer belt unit
along the rails.
d
Fully insert it until it locks
into place.
d
Be sure to keep the
transfer belt level; other-
wise, the transfer belt
may be scratched.
To Next Page
