Understanding the Media Path

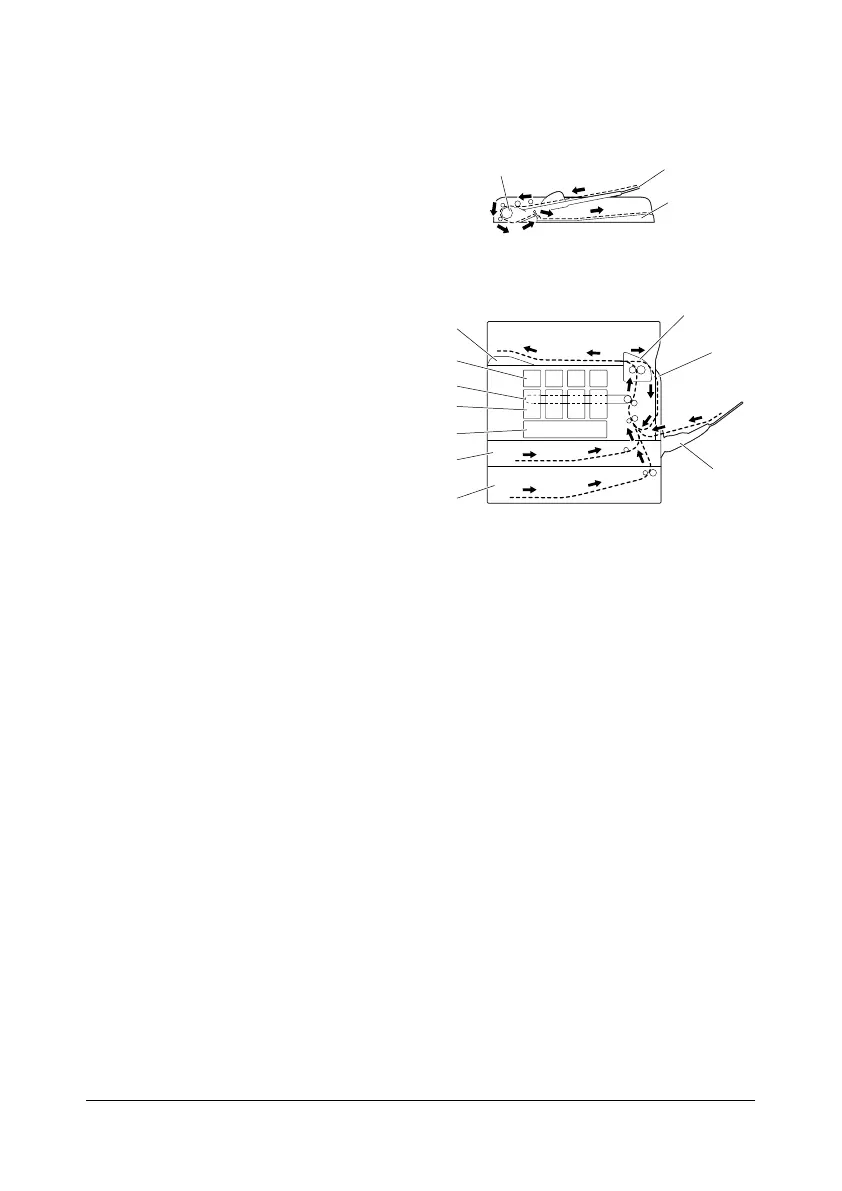

Understanding the media path will help you locate media misfeeds.
1 ADF media feed rollers
2 Document feed tray
3 Document output tray
4Fuser unit
5Duplex
6 Tray 1 (manual feed tray)
7 Tray 3 (optional Lower Feeder
Unit PF-P09)
8 Tray 2
9 Print head unit
10 Imaging unit
11 Transfer belt unit
12 Toner cartridge
13 Output tray
4
10
11
12
13
6
5
9
8
7
1
2
3
Media path
Document path
